Description
WINGONEER trademark Reg.NO:4747611
Parameters:
Working Voltage: DC 6V-90V(the output voltage is 1-100 percent of input voltage)
Potentiometer: Resistance B10K; Line 20cm; Hole 8mm
Control Power: 48W-720W
Rated Current: 8A
Maximum Current: 15A
Speed Adjustable Range: 0%-100%
PWM Frequency: 16KHZ
Dimension: 65*60*29mm
Net Weight: 75g
Note:
The power supply should be DC, can't be AC, or the DC motor speed controller will be burnt.
Please make sure the connection with power supply is correct, or the speed controller will be broken.
The positive and negative can be ignored, when the running direction is inconsistent with the expectations, you can change the direction by changing line sequence.
Adjust potentiometer knob, which can change the speed controller output duty cycle, to change motor speed.
Package Includes:
1x WINGONEER DC Motor Speed Controller
Parameters:
Working Voltage: DC 6V-90V(the output voltage is 1-100 percent of input voltage)
Potentiometer: Resistance B10K; Line 20cm; Hole 8mm
Control Power: 48W-720W
Rated Current: 8A
Maximum Current: 15A
Speed Adjustable Range: 0%-100%
PWM Frequency: 16KHZ
Dimension: 65*60*29mm
Net Weight: 75g
Note:
The power supply should be DC, can't be AC, or the DC motor speed controller will be burnt.
Please make sure the connection with power supply is correct, or the speed controller will be broken.
The positive and negative can be ignored, when the running direction is inconsistent with the expectations, you can change the direction by changing line sequence.
Adjust potentiometer knob, which can change the speed controller output duty cycle, to change motor speed.
Package Includes:
1x WINGONEER DC Motor Speed Controller
WINGONEER DC 6V-90V 15A PWM DC Motor Controller Switch Adjustable PLC Speed Governor
Price is below average
Current Price
$9.99
Average
$10.16
Min Price
$9.99
Max Price
$10.99
Price dynamics
2%
Description
WINGONEER trademark Reg.NO:4747611
Parameters:
Working Voltage: DC 6V-90V(the output voltage is 1-100 percent of input voltage)
Potentiometer: Resistance B10K; Line 20cm; Hole 8mm
Control Power: 48W-720W
Rated Current: 8A
Maximum Current: 15A
Speed Adjustable Range: 0%-100%
PWM Frequency: 16KHZ
Dimension: 65*60*29mm
Net Weight: 75g
Note:
The power supply should be DC, can't be AC, or the DC motor speed controller will be burnt.
Please make sure the connection with power supply is correct, or the speed controller will be broken.
The positive and negative can be ignored, when the running direction is inconsistent with the expectations, you can change the direction by changing line sequence.
Adjust potentiometer knob, which can change the speed controller output duty cycle, to change motor speed.
Package Includes:
1x WINGONEER DC Motor Speed Controller
Parameters:
Working Voltage: DC 6V-90V(the output voltage is 1-100 percent of input voltage)
Potentiometer: Resistance B10K; Line 20cm; Hole 8mm
Control Power: 48W-720W
Rated Current: 8A
Maximum Current: 15A
Speed Adjustable Range: 0%-100%
PWM Frequency: 16KHZ
Dimension: 65*60*29mm
Net Weight: 75g
Note:
The power supply should be DC, can't be AC, or the DC motor speed controller will be burnt.
Please make sure the connection with power supply is correct, or the speed controller will be broken.
The positive and negative can be ignored, when the running direction is inconsistent with the expectations, you can change the direction by changing line sequence.
Adjust potentiometer knob, which can change the speed controller output duty cycle, to change motor speed.
Package Includes:
1x WINGONEER DC Motor Speed Controller
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!

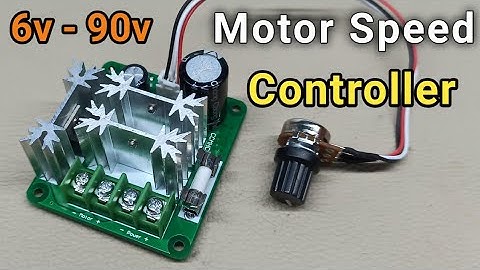

Product review & video
