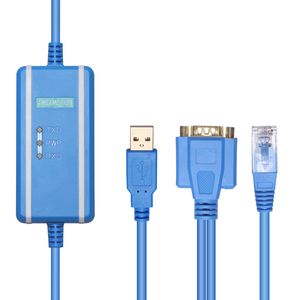

1747-UIC Download Programming Cable Compatible Allen Bradley SLC Series PLC Adapter 1747-PIC Isolated USB to RS232/DH-485 Gold-Plated Interface Converter

everybody's showing tyranny here from the automation blog.com and in this episode of the automation minute I want to show you how to set up d H 45 communications to your slick 500 now before we start I need to tell you that only certain models of the slick 500 family have of the H 45 port for instance we can see here that the 503 has it we can see here that the 502 has it the 501 also has it and you can also use what we call a link coupler to connect multiple D H 45 PLC's together on a network in which case you would be plugging in in that port you're going to look at it that port is it's an rj45 a lot like an Ethernet port and you may have some young people on your team would think it's an Ethernet port but it's not it's definitely an rj45 that is used for D H 45 and many of these devices put out 24 volts on those pins so the processors definitely do and if the AI C's powered up it wil
