Description
Feature:

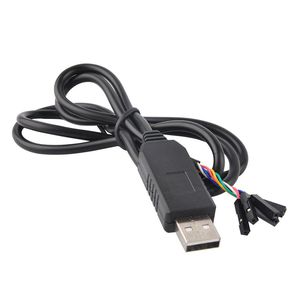

FTDI based USB to TTL Serial Cable are designed using the the standard FT232BL chipset(Made In China Version)
The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB
RX and TX LEDs indicator
The cables are available with a 6-way SIL, 0.1" connector
TTL levels is 3.3V
The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD's FT232RQ USB to Serial
UART interface IC device which handles all the USB signal and protocols
Each TTL-232R cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable
The USB side of the cable is USB powered and USB 2.0 full speed compatible
Each cable is 90cm long and supports a data transfer rate up to 3 Mbaud
1 - Black:GND
2 - Blue:CTS
3 - Red:5V
4 - Green:TXD
5 - White:RXD
6 - Yellow:RTS
Driver Link: http://www.ftdichip.com/Drivers/VCP.htm
Package Included:
1 X USB to TTL Serial Cable
FTDI based USB to TTL Serial Cable are designed using the the standard FT232BL chipset(Made In China Version)
The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB
RX and TX LEDs indicator
The cables are available with a 6-way SIL, 0.1" connector
TTL levels is 3.3V
The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD's FT232RQ USB to Serial
UART interface IC device which handles all the USB signal and protocols
Each TTL-232R cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable
The USB side of the cable is USB powered and USB 2.0 full speed compatible
Each cable is 90cm long and supports a data transfer rate up to 3 Mbaud
1 - Black:GND
2 - Blue:CTS
3 - Red:5V
4 - Green:TXD
5 - White:RXD
6 - Yellow:RTS
Driver Link: http://www.ftdichip.com/Drivers/VCP.htm
Package Included:
1 X USB to TTL Serial Cable
