Description
Product Features: Spread rate: 9.6Kbps ~ 12Mbps, the max communication distance conforms Profibus standard. Interface: Connect PROFIBUS/MPI/PPI, Isolation type 9PIN Sub-D port Isolation Voltage:1000VDC RS485 Port with lightning protection device, repeatable surge Voltage Capicity: Ipp= 100A ( 10/700us , 4KV ) Standard: ITU-TK20/21 、 VDE 0433 。± 15KV ESD protection Automatic Recovery Over-current Protection: RS485 port can burden 60V voltage caused continous current. Connect PG/PC: PCI2.1 Standard card slot Voltage: +5V DC Power:2.0W Working Temperature: 0 ~ + 70 ℃ Dimension(W*H): 102*130MM Weigth: 100G CP5611 Card Installation&Unloading Please be sure you have installed STEP7 or STEP7 MicroWIN software before install CP5611 card since it intergrate the driver program of CP5611 card. Please check the goldfinger of CP5611 card usually it should shinny and free from oxidation. If you find the oxidation issue on the surface of the goldfinger part, pls use your finger dip alcoholic and wipe it to shinny. After closing the PC then please insert CP5611 card to any of the of the PCI solt then fix the screw will be ok. Reopen the PC power, after the operation system start it will detect the CP5611 card automatically. Generally, 1AA01 more stable than 1AA00, high speed PCI Profibus Communication Speed enhanced the communication stability.

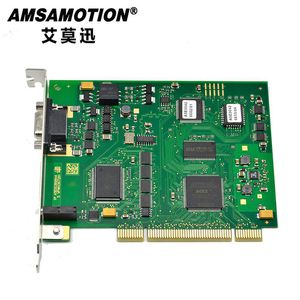

Amsamotion CP5611-A2 Card PCI PROFIBUS/MPI/PPI Card 6GK1561-1AA01 6GK1561-1AA00 Profibus DP Communication Card (6GK1561-1AA01)
Current Price
$129.99
Average
$119.99
Min Price
$110
Max Price
$129.99
Price dynamics
8%
Description
Product Features: Spread rate: 9.6Kbps ~ 12Mbps, the max communication distance conforms Profibus standard. Interface: Connect PROFIBUS/MPI/PPI, Isolation type 9PIN Sub-D port Isolation Voltage:1000VDC RS485 Port with lightning protection device, repeatable surge Voltage Capicity: Ipp= 100A ( 10/700us , 4KV ) Standard: ITU-TK20/21 、 VDE 0433 。± 15KV ESD protection Automatic Recovery Over-current Protection: RS485 port can burden 60V voltage caused continous current. Connect PG/PC: PCI2.1 Standard card slot Voltage: +5V DC Power:2.0W Working Temperature: 0 ~ + 70 ℃ Dimension(W*H): 102*130MM Weigth: 100G CP5611 Card Installation&Unloading Please be sure you have installed STEP7 or STEP7 MicroWIN software before install CP5611 card since it intergrate the driver program of CP5611 card. Please check the goldfinger of CP5611 card usually it should shinny and free from oxidation. If you find the oxidation issue on the surface of the goldfinger part, pls use your finger dip alcoholic and wipe it to shinny. After closing the PC then please insert CP5611 card to any of the of the PCI solt then fix the screw will be ok. Reopen the PC power, after the operation system start it will detect the CP5611 card automatically. Generally, 1AA01 more stable than 1AA00, high speed PCI Profibus Communication Speed enhanced the communication stability.
