Description
Product Introduction:

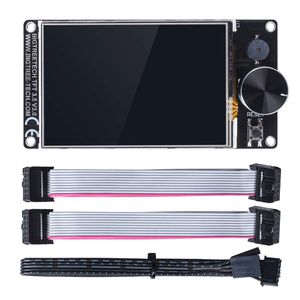

BIGTREETECH TFT35-V3.0 is a medium size, dual-mode, ultra-clear 3D printing machine display launched by the 3D printing team of Shenzhen BIGTREE technology co., LTD., it can perfectly replace the LCD12864 screen for use.
Ⅰ. Product characters
1)Upgrade the firmware by SD card. It is easy and convenient to operate.
2)Serial port screen mode supports two printing modes: SD card and U disk.
3)Reserve the extension port of filament breaking detection (FIL-DET);
4)Reserve the extension port of automatic shutdown after printing (PS-ON);
5)TFT touch screen mode uses serial port screen RS232 port;
Ⅱ. Product Parameters
Appearance size: 110*58mm
Installation size: detail information in TFT35 V3.0 -SIZE-TOP and TFT35-V3.0-SIZE-BOT
Microprocessor:STM32F207VCT6
Power Input:DC5V
SD card logic voltage:3.3V or 5V, support MEGA2560 motherboard, with higher compatibility
Ⅲ.Notes
1. The name of the firmware file in the SD card cannot be changed. (including capital and small letters)
2. Wiring process must be under the precondition of power outages. Users must check the correct connection of the circuit and the correct insertion of the drive module before turning on the electricity.
Pay attention to the wiring sequence and do not insert the wire inversely. Please refer to PIN file for detailed line order.
If you meet other problems during the using, please do not hesitate to contact us, we will answer for you carefully.
If you have any good comments or suggestions on our products, you are welcome to give us feedback, and we will carefully consider your comments or suggestions.
Thank you for supporting BIGTREETECH products.
BIGTREETECH TFT35 V3.0 Upgrade Touch Screen Controller Display with WiFi Port for SKR Mini E3 and SKR E3 3D Printer Motherboard
Current Price
$34.98
Average
$33.99
Min Price
$28.99
Max Price
$35.99
Price dynamics
3%
