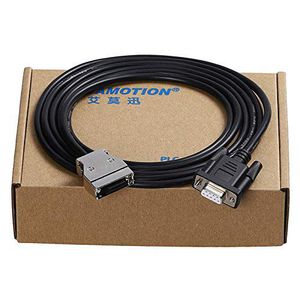

CQM1-CIF02 Series Cable RS232 Adapter for Omron CPM1/CPM1A/2A/CPM1AH/CQM1/C200HS/C200HX/HG/HE PLC Programming Cable

hello and welcome to PLC cable comm today's tutorial we're going to be using CX programmer for armor on CPUs and one of our three cables dependent upon the CPU that you have is dependent upon what cable you'll need you can always contact us at info at plc trainer net and we'd be glad to help you out to determine what cable you need first open up your device manager to see what port is going to be assigned to your USB cable then we can open up our Omron software so we're going to be using CX programmer it's pretty straightforward three which is the same as that ours was selected and earned device manager right now the program programming software is running through the different baud rates and different protocol to see what available nodes that you're actually hooked up to see at the bottom of the screen at the millisecond for the scan time for the program that's in that particular CPU w
