Firmware acquisition mode:
1. Ask customer service or technical staff to get it；
2. Log in the original website of our company to download ：
https://github.com/bigtreetech
The firmware modification is consistent with MINI UPS V2.0： Download the Marlin 2.0:
https://github.com/bigtreetech/Marlin/tree/marlin-2.0-mini-ups
Please modify the parameters according to the printer and then add the function of this power
Attention
Note: The input power only supports DC24V. Please pay attention to distinguish the positive and negative poles when wiring. The wiring process must be carried out
in the state of power failure and confirm the wiring is correct before power on.
Module communicates with the printer's motherboard
BTT UPS 24V V1.0 communicates with the motherboard through XH2.54mm 3P plug-in wire. Please identify the position of signal line "S" when wiring. Only when the signal line and the motherboard signal line interface are properly connected can the power off resume print function be realized.
Product Parameters
External dimension：52.53*50mm
Installation dimensions：44.58mm*39.38mm
Power input：DC24V
Logic voltage：3.3V or 5V
Support model：All DC24V powered 3D printers are available（like Ender3）
Package Included

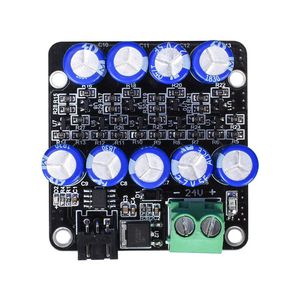

UPS 24V V1.0
