Description

※【TMC5160】
TMC5160 is a high-power stepper motor driving control chip, which has externally expanded power MOS tube, the maximum current can reach 20A, low heat when working

※【 Product Advantages】
(1)External power MOS tube can support larger current, the maximum current can reach 20A (because the module is limited by area, the current cannot exceed)
(2)Super-mute mode
(3)Low calorific value
(4)can prevent motor shake
(5)not easy to lose step
(6)can drive 57 stepper motor
Special note : Currently only firmware of Marlin 2.0 and above supports the SPI mode of TMC5160

✓1.Driver chip: TMC5160-WA;
✓2.Product size: 15.3mm * 20.4mm;
✓3.Power supply voltage (VM): 8V --- 35V;
✓4.Maximum current: 4.4A (sampling resistance determines the maximum current);✓✓Maximum breakdown: 256; ✓✓Working mode: SPI mode
✓5.Manual:https://github.com/bigtreetech/BIGTREETECH-TMC5160-V1.0

※【 Precautions】
1). Always disconnect the power supply before installing the driver to prevent the driver from burning.
2). Be sure to confirm the direction of the driver before installing the driver. Prevent the driver from burning due to reverse connection.
3). Please do not plug and unplug the driver module when power is on to avoid damage.
4). When installing the heat sink, please be careful not to contact the heat sink and the pin header to prevent short circuit.
5). The product is sensitive to static electricity, please handle it carefully when using, it is best to remove the package when using. If you have any question within using,pls fell free to contact with us【bigtreetech-us（Mail symbol）outlook.com】 change the Mail symbol to @

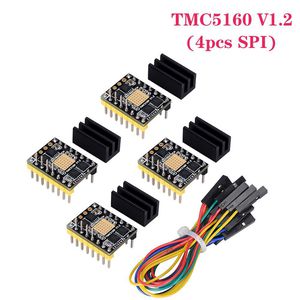

BIGTREETECH DIRECT TMC5160 V1.2 SPI Stepper Motor Driver 4.4A High Power Mute Driver 3D Printer Parts for SKR V1.3 PRO Control Board VS TMC2130 SPI

Price is below average

Get price

Current Price

$59.98

Average

$64.37

Min Price

$59.98

Max Price

$79.54
