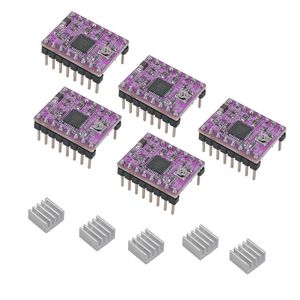

The DRV8825 stepper motor driver carrier is a breakout board for TI's DRV8825 microstepping bipolar stepper motor driver. The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications. The DRV8825 features adjustable current limiting, over-current and over-temperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2-45V and can deliver up to approximately 1.5A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling)

Specification

*1. Suitable for driving stepper motors within 8.2V to 45V 2.5A；
*2. Simple step and direction control interface;
*3. Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step;
*4. Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor's rated voltage to achieve higher step rates
*5. Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay);
*6. Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout;
*7. Short-to-ground and shorted-load protection.
