Description

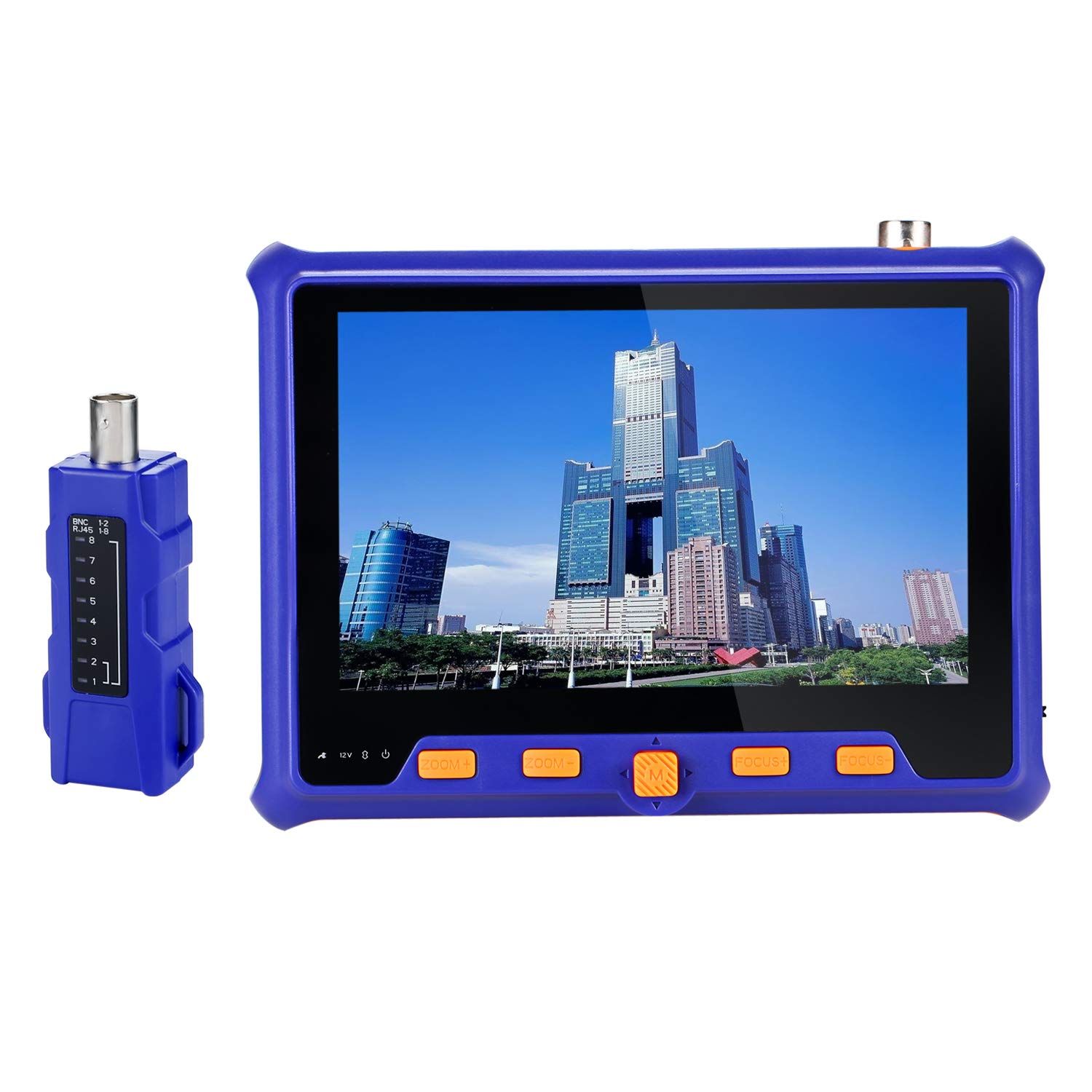

The Purpose of 5800ACT CCTV Tester:
This product was designed to assist the camera installation process by helping the installation
and adjust the view position and lens after the installation.It is designed to bring
installer maximum convenience during the installation.
Basic Information&Product Details:
♥5.0 inch 800x480 resolution (RGB). PAL/NTSC (Auto adapt).
♥PTZ control:RS485 control, Baud-Rate: 1200~115200bps. Compatible with PELCO-D / P protocols
♥Camera Power Supply: Power output of DV12V/1A for temporarily powering on cameras for angle and zoom adjustment.
♥USB Power Supply: USB2.0 interface provides 5V / 1A power output
♥Audio signal input
♥Enhanced UTP cable/BNC cable test with indicatorlights. The cable test distance can reach 100-150 meters
♥VGA input:VGA support 1024*768 and 1280*1024 resolutions
♥Coaxial HD test
AHD tester support 1080P AHD Input test, 2560x1944P12.5F/ 20fps
TVI tester support 1080P AHD Input test, 2560x1944P12.5F/ 20fps
CVI tester support 1080P AHD Input test, 2500x1600P12.5F/ 20F/25fps
♥LED emergency lighting
♥Bulit-in 3.7V Lithium polymer battery ,3000mAh
Product Accessories:
1*Test monitor
1*Wrist band
1*DC output cable
1*Network cable test unit
1*Coax cable test convertor
1*Audio test cable
1*USB cable
1*US Power adapter
1*User manual
This product was designed to assist the camera installation process by helping the installation
and adjust the view position and lens after the installation.It is designed to bring
installer maximum convenience during the installation.
Basic Information&Product Details:
♥5.0 inch 800x480 resolution (RGB). PAL/NTSC (Auto adapt).
♥PTZ control:RS485 control, Baud-Rate: 1200~115200bps. Compatible with PELCO-D / P protocols
♥Camera Power Supply: Power output of DV12V/1A for temporarily powering on cameras for angle and zoom adjustment.
♥USB Power Supply: USB2.0 interface provides 5V / 1A power output
♥Audio signal input
♥Enhanced UTP cable/BNC cable test with indicatorlights. The cable test distance can reach 100-150 meters
♥VGA input:VGA support 1024*768 and 1280*1024 resolutions
♥Coaxial HD test
AHD tester support 1080P AHD Input test, 2560x1944P12.5F/ 20fps
TVI tester support 1080P AHD Input test, 2560x1944P12.5F/ 20fps
CVI tester support 1080P AHD Input test, 2500x1600P12.5F/ 20F/25fps
♥LED emergency lighting
♥Bulit-in 3.7V Lithium polymer battery ,3000mAh
Product Accessories:
1*Test monitor
1*Wrist band
1*DC output cable
1*Network cable test unit
1*Coax cable test convertor
1*Audio test cable
1*USB cable
1*US Power adapter
1*User manual
Electop 4 in 1 CCTV Camera Tester AHD/TVI/CVI 5 Inch Coaxial Tester Analog Video Test RS-485 PTZ Control Power Output VGA Input UTP Cable Test Security Camera Monitor Tester(5800-ATC)
Price is below average
Current Price
$89.87
Average
$106.05
Min Price
$89.87
Max Price
$115.99
Price dynamics
15%
Description
The Purpose of 5800ACT CCTV Tester:
This product was designed to assist the camera installation process by helping the installation
and adjust the view position and lens after the installation.It is designed to bring
installer maximum convenience during the installation.
Basic Information&Product Details:
♥5.0 inch 800x480 resolution (RGB). PAL/NTSC (Auto adapt).
♥PTZ control:RS485 control, Baud-Rate: 1200~115200bps. Compatible with PELCO-D / P protocols
♥Camera Power Supply: Power output of DV12V/1A for temporarily powering on cameras for angle and zoom adjustment.
♥USB Power Supply: USB2.0 interface provides 5V / 1A power output
♥Audio signal input
♥Enhanced UTP cable/BNC cable test with indicatorlights. The cable test distance can reach 100-150 meters
♥VGA input:VGA support 1024*768 and 1280*1024 resolutions
♥Coaxial HD test
AHD tester support 1080P AHD Input test, 2560x1944P12.5F/ 20fps
TVI tester support 1080P AHD Input test, 2560x1944P12.5F/ 20fps
CVI tester support 1080P AHD Input test, 2500x1600P12.5F/ 20F/25fps
♥LED emergency lighting
♥Bulit-in 3.7V Lithium polymer battery ,3000mAh
Product Accessories:
1*Test monitor
1*Wrist band
1*DC output cable
1*Network cable test unit
1*Coax cable test convertor
1*Audio test cable
1*USB cable
1*US Power adapter
1*User manual
This product was designed to assist the camera installation process by helping the installation
and adjust the view position and lens after the installation.It is designed to bring
installer maximum convenience during the installation.
Basic Information&Product Details:
♥5.0 inch 800x480 resolution (RGB). PAL/NTSC (Auto adapt).
♥PTZ control:RS485 control, Baud-Rate: 1200~115200bps. Compatible with PELCO-D / P protocols
♥Camera Power Supply: Power output of DV12V/1A for temporarily powering on cameras for angle and zoom adjustment.
♥USB Power Supply: USB2.0 interface provides 5V / 1A power output
♥Audio signal input
♥Enhanced UTP cable/BNC cable test with indicatorlights. The cable test distance can reach 100-150 meters
♥VGA input:VGA support 1024*768 and 1280*1024 resolutions
♥Coaxial HD test
AHD tester support 1080P AHD Input test, 2560x1944P12.5F/ 20fps
TVI tester support 1080P AHD Input test, 2560x1944P12.5F/ 20fps
CVI tester support 1080P AHD Input test, 2500x1600P12.5F/ 20F/25fps
♥LED emergency lighting
♥Bulit-in 3.7V Lithium polymer battery ,3000mAh
Product Accessories:
1*Test monitor
1*Wrist band
1*DC output cable
1*Network cable test unit
1*Coax cable test convertor
1*Audio test cable
1*USB cable
1*US Power adapter
1*User manual
