Description

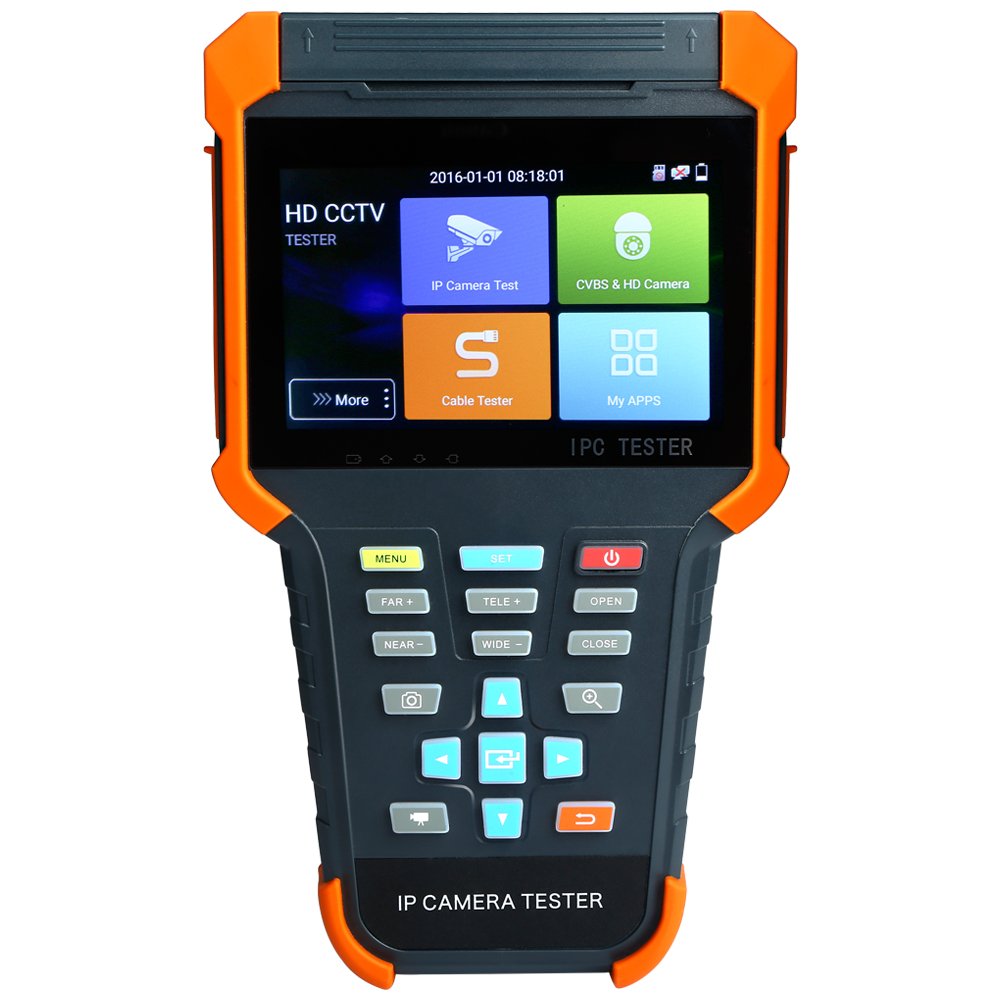

4 inch 800*480 touch screen, easy to operate.
ONVIF IP camera test.
Test some customized brands's H.264/MPEG4/MJPEG IP cameras, such as Dahua, HIKVISION,ACTI, etc. Customized service is available.
Built in Wi-Fi ,can receive image from wireless camera, as well as ONVIF and customized IP cameras.
HDMI signal output，support1080P
Analog camera image display, Auto adapt and display the video format of NTSC/PAL
Support more than 30 protocols ,such as PELCO-P、PELCO-D、SAMSUNG etc
Video image magnification, to view the details, easy to use
Snapshot and save the current image as JPG file in the SD card, video record and playback.
LED Lamp, easy to operate at night
Micro SD card moveable
LCD screen brightness/contrast/color Saturation adjustable
Enhanced Color bar generator, Video Generating, the PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful images).
Ping test, PING is the most conventional network debugging tools.
IP address scan, quickly search the connected IP camera or other network device's IP address
PoE voltage test，it can test the PoE voltage when the POE switch is supplying the POE power to IP camera ,wireless AP etc
Cable test , Test LAN cable or telephone cable,UTP cable etc ,cable type and the sequence of wires will be displayed
Support RS232/RS485,Rate 600 ～ 115200bps adjustable
PTZ protocol analysis, control protocol command displays to check RS485 transmission whether is normal, easy to find the fault device
PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and the preset position
DC12V 2A output power for camera
PoE 24W power output，supply temporary power for PoE camera
