Description
Style:IPC9800ADHS Plus

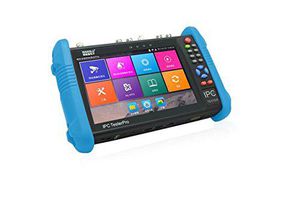

IPC9800ADHS Plus: for IP camera, analog camera, AHD, HD-TVI, CVI, SDI camera test+ HDMI in
1. 5MP AHD camera test,2592x1944P 12.5/20FPS,8MP TVI camera test,3840x2160P 12.5FPS, 8MP CVI camera test, 3840x2160P 12.5/20FPS,HD-SDI/EX-SDI test(1080P 25/30/50/60fps)
2 Compatible with almost all models' cameras, such as Dahua, HIKVISION, Samsung and Axis
3 PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank
4 UTP cable, telephone cable's sequence and connectivity test.
5 HDMI signal output, support 1080p display image, record and snapshot
6 CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable
7 Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
8 POE/DC12V voltage and power measurement
9 IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester's IP address
10 It supports batch editing IP address
11 IP & Analog cameras, dual window test
12 Tester, android version mobile phone and PC display at the same time by TesterPlay
13 Screen capture, you can capture screen interface in any time
14 4K video files and MKV/MP4 media files play
15 Drop-down OSD menu and self-define shortcut menu
16 Shortcut button
17 Dhcp server
18 Audio in /out, support record and save the audio
19 12V 2A power output and USB 5V power output
20 Lithium Ion Polymer 7.4V/5000mAh Battery, working time lasts 10 hours
