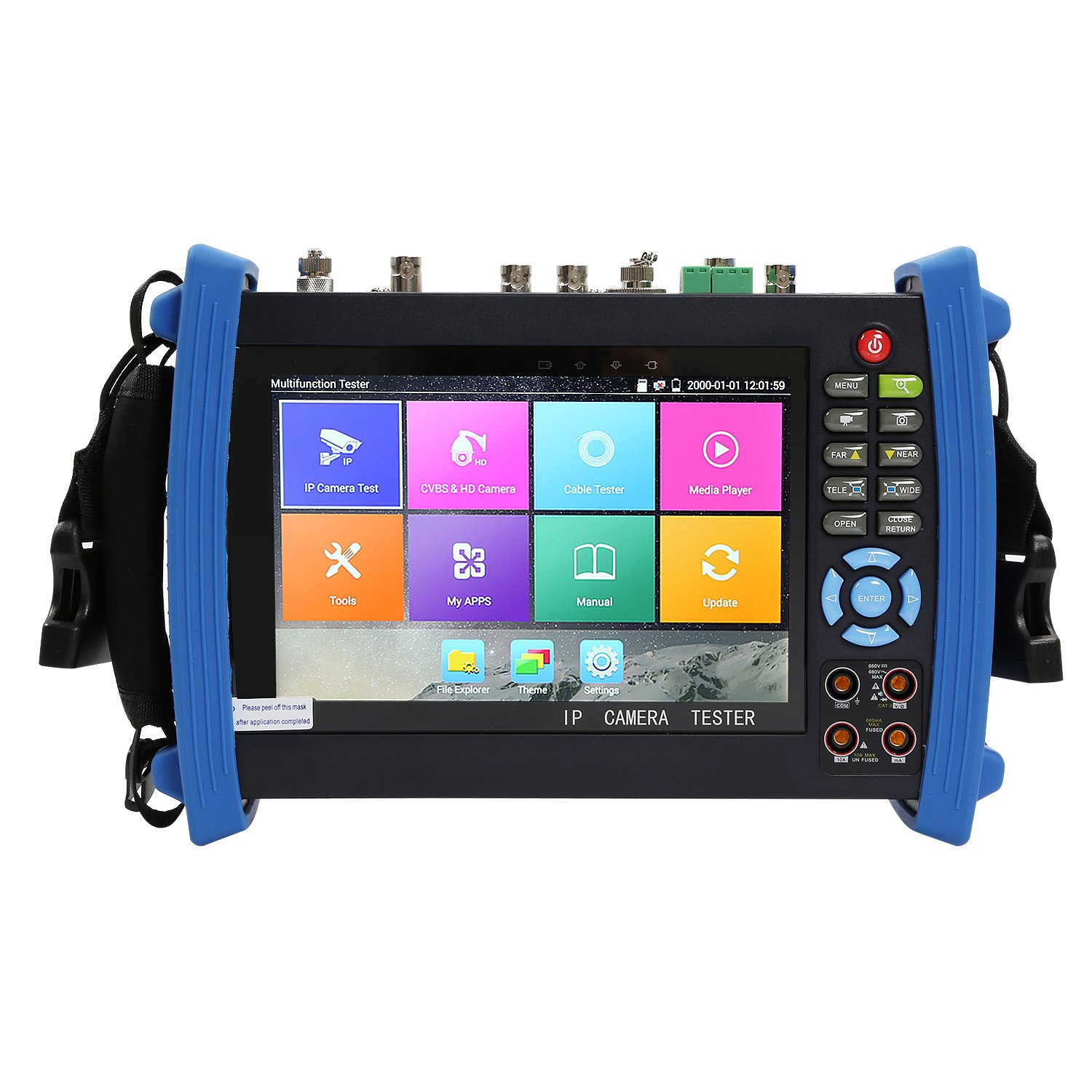

1 5MP TVI(2560x1944P 12.5FPS) test, 5MP AHD(2560x1944P 12.5FPS) test, 4MP CVI(2560x1440P 25F/30F) test, 3G-SDI/HD-SDI/EX-SDI test(1080P 25/30/50/60fps)
2 Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement
3 Optical power meter: for optical power testing and Fiber link loss relative measurement
4 Visual fault locator : Emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10KM
5 TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit.
6 Compatible with almost all models' cameras, such as Dahua, HIKVISION, Samsung and Axis
7 PoE DC48V power output, Max power 24W,12V /2A power output/5V 2A power output, as a power bank
8 UTP cable, telephone cable's sequence and connectivity test.
9 HDMI signal output, support 1080p display image, record and snapshot
10 CVBS loop test, the tester send and receive color bar generator signal ,to check BNC cable
11 Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
12 Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
13 Cable tracer, find a connected cable from mess cables by tone generator
14 POE/DC12V voltage and power measurement
15 IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address
16 It supports batch editing IP address
17 Tester, android version mobile phone and PC display at the same time by TesterPlay
18 Dhcp server
19 Audio in /out, support record and save the audio
20 12V 2A power output and USB 5V power output
21 8GB SD card included
22 Lithium Ion Polymer 7.4V/6600mAh Battery, working time lasts 16 hour
