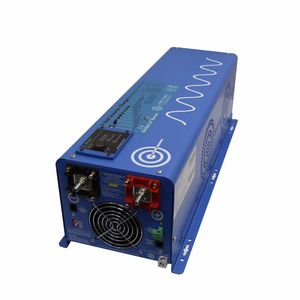

AIMS Power PICOGLF60W24V240VS 24 Volt Pure Sine Inverter Charger, 6000 Watt Low Frequency Inverter 110/220Vac Split Phase, 18000 Watt Surge, Battery Priority Selector, Terminal Block, GFCII

This split phase inverter is capable of producing 110/220vac. It will work virtually anywhere in the world, with the ability to auto detect 50 or 60 hz. The built-in charger allows for you to use your existing grid power to maintain a charge on your batteries.

• 6000 watt low frequency inverter 110/220Vac Split Phase
• 18000 watt surge for 20 seconds -3x surge capability
• Battery Priority Selector
• Terminal Block
• GFCI
• Marine Coated and Protected
• Multi Stage Smart charger 85 Amp
• Remote panel available
• Auto frequency
• 10msec typical transfer time
• Selectable 25W power save mode (hibernation)
• 8 battery charger settings

• Output Waveform: Pure Sine/Same as input (Bypass Mode)
• Nominal Efficiency: >88% (Peak)
• Line Mode Efficiency: >95%
• Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
• Typical Transfer Time: 10ms
• THD: <10% DC
• Nominal Input Voltage: 24.0Vdc
• Minimum Start Voltage: 20.0Vdc
• Low Battery Alarm: 21.0Vdc-22.0Vdc
• Low battery Trip: 20.0Vdc-21.0Vdc
• High Voltage Alarm: 32.0Vdc
• Low battery Voltage Restart: 26.6Vdc
• Idle Consumption: 46.5W
• Power Saver Mode Idle Consumption: 18.9W
• Output voltage: Depends on battery Type
• Charger Rate: 40A
• Dimensions: 16.48" x 8.74" x 7.1"
• Weight: 56 lbs
