Description
MODEL: IGrid SV LV-3K-24 Max. PV Array Power: 2000W Maximum PV Array Open Circuit Voltage: 145 VDC MPPT Range @ Operating Voltage: 30 VDC ~ 115 VDC Number of MPP Tracker: 1 GRID-TIE OPERATION GRID OUTPUT (AC) Nominal Output Voltage: 110/120 VAC Rated Output Power: 2400W Output Voltage Range: 88~127 Vac VAC* Nominal Output Current: 27 A Power Factor: >0.99 EFFICIENCY Maximum Conversion Efficiency (DC/AC): 90% OFF-GRID, HYBRID OPERATION GRID INPUT AC Start-up Voltage / Auto Restart Voltage: 60 - 70 VAC / 90 VAC Acceptable Input Voltage Range: 95-140 VAC Maximum AC Input Current: 40A BATTERY MODE OUTPUT (AC) Nominal Output Voltage: 110/120 VAC Rated Output Power: 2400W / 3000VA Output Waveform: Pure Sine Wave Efficiency (DC to AC): 93% BATTERY & CHARGER Nominal DC Voltage: 24 VDC Maximum Charging Current (from Grid): 60A Maximum Charging Current (from PV): 80A Maximum Charging Current: 140A GENERAL PHYSICAL Dimension, D X W X H (mm): 120x295x505 Net Weight (kgs): 11.5 INTERFACE Parallel-able: Yes. Single phase, Split phase External Safety Box (Optional): Yes Communication: USB/Dry-Contact ENVIRONMENT Humidity: 0 ~ 90% RH (No condensing) Operating Temperature: 0 to 50°C

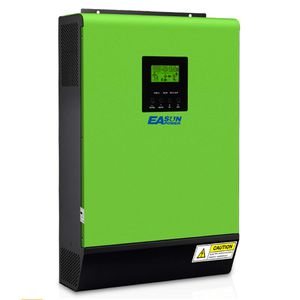

EASUN POWER 3KVA 24VDC 110V 120V Grid Tie Solar Inverter 2000W 80A MPPT Solar Charge Pure Sine Wave Hybrid Inverter 40A AC Charge
Current Price
$658
Average
$579.25
Min Price
$520
Max Price
$658
Price dynamics
12%
Description
MODEL: IGrid SV LV-3K-24 Max. PV Array Power: 2000W Maximum PV Array Open Circuit Voltage: 145 VDC MPPT Range @ Operating Voltage: 30 VDC ~ 115 VDC Number of MPP Tracker: 1 GRID-TIE OPERATION GRID OUTPUT (AC) Nominal Output Voltage: 110/120 VAC Rated Output Power: 2400W Output Voltage Range: 88~127 Vac VAC* Nominal Output Current: 27 A Power Factor: >0.99 EFFICIENCY Maximum Conversion Efficiency (DC/AC): 90% OFF-GRID, HYBRID OPERATION GRID INPUT AC Start-up Voltage / Auto Restart Voltage: 60 - 70 VAC / 90 VAC Acceptable Input Voltage Range: 95-140 VAC Maximum AC Input Current: 40A BATTERY MODE OUTPUT (AC) Nominal Output Voltage: 110/120 VAC Rated Output Power: 2400W / 3000VA Output Waveform: Pure Sine Wave Efficiency (DC to AC): 93% BATTERY & CHARGER Nominal DC Voltage: 24 VDC Maximum Charging Current (from Grid): 60A Maximum Charging Current (from PV): 80A Maximum Charging Current: 140A GENERAL PHYSICAL Dimension, D X W X H (mm): 120x295x505 Net Weight (kgs): 11.5 INTERFACE Parallel-able: Yes. Single phase, Split phase External Safety Box (Optional): Yes Communication: USB/Dry-Contact ENVIRONMENT Humidity: 0 ~ 90% RH (No condensing) Operating Temperature: 0 to 50°C
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
