Description

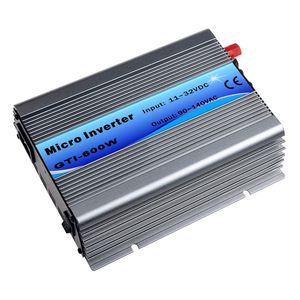

600W Grid Tied Inverter,Pure Sine Wave Inverter
DC11V-32V to AC90-140V 50Hz/60Hz Auto
Fit For 12V Solar Panel 21V(Voc) 18V (Vmp)
With MPPT Functions
Please be noted, This grid tie inverter cannot be used as off grid/stand alone solar system.
The output need to be connected to the grid power. Can not supply power directly to the AC loads.
Smart grid tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid. The AC output from Smart Micro inverter is synchronized and in phase with the utility grid.
Output Power:600W/110V
AC Output Voltage: 90V-140V
Frequency Range: 48Hz ~ 62Hz Auto
DC Input: 11V-32V
MPPT range: 15V - 22V.
It will perfect compatible with 12V solar panels
Please note if using 12v battery as input source, output power will not be 100% if voltage less than 15V.
Consider the conversion rate of solar panel is about 75-80%, and the Grid Tie Inverter is about 80-90%, for example, if you need 400W power output from the inverter, you need to connect it to a solar panel that 500W/0.8/0.9 equals about 555W, (555w*0.8*0.9=400W)
DC11V-32V to AC90-140V 50Hz/60Hz Auto
Fit For 12V Solar Panel 21V(Voc) 18V (Vmp)
With MPPT Functions
Please be noted, This grid tie inverter cannot be used as off grid/stand alone solar system.
The output need to be connected to the grid power. Can not supply power directly to the AC loads.
Smart grid tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid. The AC output from Smart Micro inverter is synchronized and in phase with the utility grid.
Output Power:600W/110V
AC Output Voltage: 90V-140V
Frequency Range: 48Hz ~ 62Hz Auto
DC Input: 11V-32V
MPPT range: 15V - 22V.
It will perfect compatible with 12V solar panels
Please note if using 12v battery as input source, output power will not be 100% if voltage less than 15V.
Consider the conversion rate of solar panel is about 75-80%, and the Grid Tie Inverter is about 80-90%, for example, if you need 400W power output from the inverter, you need to connect it to a solar panel that 500W/0.8/0.9 equals about 555W, (555w*0.8*0.9=400W)
Y&H Grid Tie Inverter 600W Stackable DC11-32V Input AC110V MPPT Pure Sine Wave Micro Inverter fit for 12V Solar Panel/24V Battery
Price is below average
Current Price
$89.99
Average
$92.92
Min Price
$89.99
Max Price
$95.99
Price dynamics
3%
Description
600W Grid Tied Inverter,Pure Sine Wave Inverter
DC11V-32V to AC90-140V 50Hz/60Hz Auto
Fit For 12V Solar Panel 21V(Voc) 18V (Vmp)
With MPPT Functions
Please be noted, This grid tie inverter cannot be used as off grid/stand alone solar system.
The output need to be connected to the grid power. Can not supply power directly to the AC loads.
Smart grid tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid. The AC output from Smart Micro inverter is synchronized and in phase with the utility grid.
Output Power:600W/110V
AC Output Voltage: 90V-140V
Frequency Range: 48Hz ~ 62Hz Auto
DC Input: 11V-32V
MPPT range: 15V - 22V.
It will perfect compatible with 12V solar panels
Please note if using 12v battery as input source, output power will not be 100% if voltage less than 15V.
Consider the conversion rate of solar panel is about 75-80%, and the Grid Tie Inverter is about 80-90%, for example, if you need 400W power output from the inverter, you need to connect it to a solar panel that 500W/0.8/0.9 equals about 555W, (555w*0.8*0.9=400W)
DC11V-32V to AC90-140V 50Hz/60Hz Auto
Fit For 12V Solar Panel 21V(Voc) 18V (Vmp)
With MPPT Functions
Please be noted, This grid tie inverter cannot be used as off grid/stand alone solar system.
The output need to be connected to the grid power. Can not supply power directly to the AC loads.
Smart grid tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid. The AC output from Smart Micro inverter is synchronized and in phase with the utility grid.
Output Power:600W/110V
AC Output Voltage: 90V-140V
Frequency Range: 48Hz ~ 62Hz Auto
DC Input: 11V-32V
MPPT range: 15V - 22V.
It will perfect compatible with 12V solar panels
Please note if using 12v battery as input source, output power will not be 100% if voltage less than 15V.
Consider the conversion rate of solar panel is about 75-80%, and the Grid Tie Inverter is about 80-90%, for example, if you need 400W power output from the inverter, you need to connect it to a solar panel that 500W/0.8/0.9 equals about 555W, (555w*0.8*0.9=400W)
