Description
Package Include:

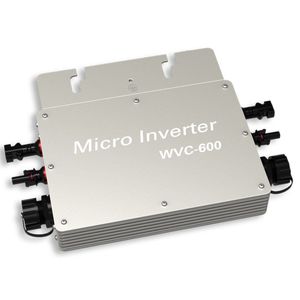

1. One 600W 24v-110V waterproof inverter
2. One user manual
3. 1 pouch of screw for micro inverter installation
4. One AC Cable
Models: WVC600W 110V
Recommend use PV panels: 600W / Vmp>34V / Voc<50V
DC MAX input: current 40A
AC MAX output: power 600Watt
DC MAX Open-circuit input-voltage: 50VDC
DC input voltage range: 22~50VDC
MAX output power factor: 0.99
DC input Reverse voltage protection: FUSE
AC output voltage range: 80V-160V
AC frequency range: 49.3-50.5 Hz
THDIAC: <5%
AC Phase: <0.5%
Islanding protection: VAC; AC
Output short circuit protection: Current-limiting
Led Display: Refer to "LED Display"
Communication power line carrier-current communication
Standby Power: <1W
Night Power: <1W
Ambient temperature range: -40℃~65℃
Humidity: 0~100%
Waterproof class: IP65
Network test: DIN VDE 1026 UL1741
Certificate: CEC
Notes:
1.Please connect the inverter following the operation instruction show above. If have any question please contact with relative persons.
2.Non-professionals do not disassemble. Only qualified personnel may repair this product.
3.Please install inverter in the low humidity and well-ventilated place to avoid the inverter over-heating, and clear around the inflammable and explosive materials.
4.When using this product, avoid children touching, playing, to avoid electric shock. Connected solar panels DC input DC power supply cable.
1. One 600W 24v-110V waterproof inverter
2. One user manual
3. 1 pouch of screw for micro inverter installation
4. One AC Cable
Models: WVC600W 110V
Recommend use PV panels: 600W / Vmp>34V / Voc<50V
DC MAX input: current 40A
AC MAX output: power 600Watt
DC MAX Open-circuit input-voltage: 50VDC
DC input voltage range: 22~50VDC
MAX output power factor: 0.99
DC input Reverse voltage protection: FUSE
AC output voltage range: 80V-160V
AC frequency range: 49.3-50.5 Hz
THDIAC: <5%
AC Phase: <0.5%
Islanding protection: VAC; AC
Output short circuit protection: Current-limiting
Led Display: Refer to "LED Display"
Communication power line carrier-current communication
Standby Power: <1W
Night Power: <1W
Ambient temperature range: -40℃~65℃
Humidity: 0~100%
Waterproof class: IP65
Network test: DIN VDE 1026 UL1741
Certificate: CEC
Notes:
1.Please connect the inverter following the operation instruction show above. If have any question please contact with relative persons.
2.Non-professionals do not disassemble. Only qualified personnel may repair this product.
3.Please install inverter in the low humidity and well-ventilated place to avoid the inverter over-heating, and clear around the inflammable and explosive materials.
4.When using this product, avoid children touching, playing, to avoid electric shock. Connected solar panels DC input DC power supply cable.
ECO-WORTHY Solar on Grid Tied Micro Inverter Power Limiter MPPT PV System DC to AC (600W DC24V)
Price is below average
Current Price
$155.98
Average
$157.57
Min Price
$149.98
Max Price
$159.96
Price dynamics
1%
Description
Package Include:
1. One 600W 24v-110V waterproof inverter
2. One user manual
3. 1 pouch of screw for micro inverter installation
4. One AC Cable
Models: WVC600W 110V
Recommend use PV panels: 600W / Vmp>34V / Voc<50V
DC MAX input: current 40A
AC MAX output: power 600Watt
DC MAX Open-circuit input-voltage: 50VDC
DC input voltage range: 22~50VDC
MAX output power factor: 0.99
DC input Reverse voltage protection: FUSE
AC output voltage range: 80V-160V
AC frequency range: 49.3-50.5 Hz
THDIAC: <5%
AC Phase: <0.5%
Islanding protection: VAC; AC
Output short circuit protection: Current-limiting
Led Display: Refer to "LED Display"
Communication power line carrier-current communication
Standby Power: <1W
Night Power: <1W
Ambient temperature range: -40℃~65℃
Humidity: 0~100%
Waterproof class: IP65
Network test: DIN VDE 1026 UL1741
Certificate: CEC
Notes:
1.Please connect the inverter following the operation instruction show above. If have any question please contact with relative persons.
2.Non-professionals do not disassemble. Only qualified personnel may repair this product.
3.Please install inverter in the low humidity and well-ventilated place to avoid the inverter over-heating, and clear around the inflammable and explosive materials.
4.When using this product, avoid children touching, playing, to avoid electric shock. Connected solar panels DC input DC power supply cable.
1. One 600W 24v-110V waterproof inverter
2. One user manual
3. 1 pouch of screw for micro inverter installation
4. One AC Cable
Models: WVC600W 110V
Recommend use PV panels: 600W / Vmp>34V / Voc<50V
DC MAX input: current 40A
AC MAX output: power 600Watt
DC MAX Open-circuit input-voltage: 50VDC
DC input voltage range: 22~50VDC
MAX output power factor: 0.99
DC input Reverse voltage protection: FUSE
AC output voltage range: 80V-160V
AC frequency range: 49.3-50.5 Hz
THDIAC: <5%
AC Phase: <0.5%
Islanding protection: VAC; AC
Output short circuit protection: Current-limiting
Led Display: Refer to "LED Display"
Communication power line carrier-current communication
Standby Power: <1W
Night Power: <1W
Ambient temperature range: -40℃~65℃
Humidity: 0~100%
Waterproof class: IP65
Network test: DIN VDE 1026 UL1741
Certificate: CEC
Notes:
1.Please connect the inverter following the operation instruction show above. If have any question please contact with relative persons.
2.Non-professionals do not disassemble. Only qualified personnel may repair this product.
3.Please install inverter in the low humidity and well-ventilated place to avoid the inverter over-heating, and clear around the inflammable and explosive materials.
4.When using this product, avoid children touching, playing, to avoid electric shock. Connected solar panels DC input DC power supply cable.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
