Description

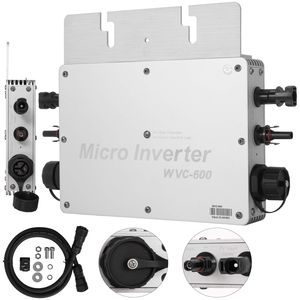

This 600W solar grid tie inverter, inverts DC to AC 110V micro inverter. IP65 waterproof class, with high performance MPPT (Maximum Power Point Tracking) function, adopts reverse efficient power transmission technology and intelligent monitoring system, the inverter is safe, intelligent and convenient to use.
Features
【Waterproof】- IP65 waterproof class, effectively prevent rainwater from eroding the surface. Connected in parallel, minimizing safety hazards. High quality and safe enough.
【MPPT Function】- High performance powerful MPPT (maximum power point tracking) algorithm, optimize the power from the solar panels to collect. Capture and collect sunlight effectively.
【Intelligent Monitoring】- The inverter can collect real-time data with intelligent monitoring system, can be controlled start-up / shutdown / power regulation.
Specifications
Product: Waterproof solar grid tie inverter
Recommended input power: 500-600Watt
Recommend the use of PV modules: 2*300W/Vmp>34V/Voc<50V
Maximum input DC voltage: 50V
Peak power tracking voltage: 25-40V
Operating voltage range: 17-50V
Min/Max start voltage: 22-50V
Maximum DC short current: 40A
Maximum input current: 25A
Output power: 230V AC
Peak power output: 600W
Rated output power: 550W
Rated output current: 4.58A
Rated voltage range: 80-160V AC
Rated frequency range: 57-62.5 Hz
Static MPPT efficiency: 99.5%
Maximum output efficiency: 92%
Night time power consumption: <50mW Max
Package size: 34x25x12 cm(13.39x9.84x4.72 inch)
Gross weight: 2.45 kg (5.40 lbs)
Package contents
1 x 600W Grid Tie Inverter
1 x Power Converter
1 x 1.5m Power Cable
1 x Set of Mounting Accessories
1 x Product Manual
