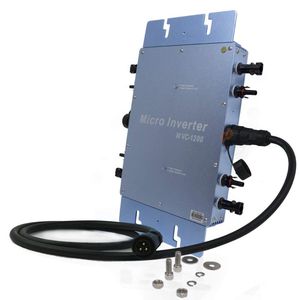

1.WV-1200  Parameters

Recommended input power 1200Watt

Maximum input DC voltage 50V

Peak power tracking voltage 25-40V

Operating Voltage Range 17-50V

Min / Max start voltage 22-50V

Maximum DC short current 80A

Maximum Input Current 54.4A

Output Data ：120VAC /230VAC

Peak power output 1200Watt 1200Watt

Rated output power 1150Watt 1150Watt

Rated output current 9.58A 5A

Rated voltage range 80-160VAC 180-260VAC

Rated frequency range 57-62.5Hz 47-52.5Hz

Power factor >98% >98%

Output Efficiency @120VAC @230VAC

Static MPPT efficiency 99.5% 99.5%

Maximum output efficiency 90% 90%

The average efficiency 88% 88%

Night time power consumption <50mW Max <70mW Max

THD <5% <5%

2.Exterior

Ambient temperature -40℃ to +60℃

Operating temperature range (inverter inside) -40℃ to +82℃

Dimensions (WxHxD) 370mm×305mm×38mm

Weight 2.85kg

Waterproof Rating IP65
