Description

General specification:

Continuous Output Power :12.0KW
Surge Rating(20s) :36.0KW
Output Waveform :Pure Sine Wave
AC Output Voltage: 120V and 240V
AC Input Voltage:240V
DC Battery Voltage:48Vdc
Solar charger Current:40Amp
AC Battery charger:120±5Amp
Output Voltage Regulation :±10% RMS
Output Frequency :50Hz ± 0.3Hz/60Hz ± 0.3Hz
Typical transfer Time :10ms(Max)

DC Input:

Nominal Input Voltage :48.0Vdc
Minimum Start Voltage :40.0Vdc
Low Battery Alarm :42.0Vdc / 44.0Vdc
Low Battery Trip :40.0Vdc / 42.0Vdc
High Voltage Alarm :64.0Vdc
Low Battery voltage recover :62.0Vdc
Idle Consumption-Search Mode :< 25 W when Power Saver On

Charger:

Output Voltage: Depends on battery type
Max Charge Power Rate: 1/3 Rating Power
Battery Initial Voltage for Start Up: 40-62.8V
Over Charge Protection Shutdown :62.8V
Remote Control :Yes

Bypass & Protection:

Input Voltage Waveform :Sine wave (Grid or Generator)
Nominal Voltage:240Vac
Nominal Input Frequency :50Hz or 60Hz (Auto detect)
Bypass breaker rating:63A

Solar Charger controller:

Rated Voltage :48Vdc
Solar Input Voltage Range: 60-100Vdc
Max.PV Open Circuit Array Voltage:105Vdc
Rated Charge Current :40A
Over Charge Disconnection: 59.2V
Over Charge Recovery :54.4V
Over Discharge Disconnection:43.2 V(default)
Over Discharge Reconnection :49.2V

Mechanical specification:

Inverter Dimensions(L*W*H) :588*415*200mm
Inverter Weight(Solar Chg)KG: 90
Display :LED +LCD
Standard Warranty :1 Year

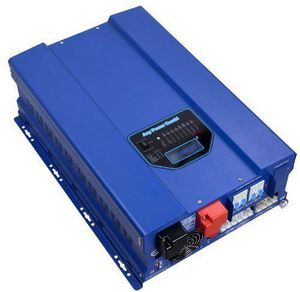

SUNGOLDPOWER 12000W Peak 36000W Split Phase Pure Sine Wave Power Inverter,Low Frequency Inverter DC 48V AC Input 240V Solar Wind Power Inverters AC Output 120V 240V Converter

Current Price

$2 799

Average

$2 582.33

Min Price

$2 499

Max Price

$2 799

Price dynamics

8%

Description

General specification:

Continuous Output Power :12.0KW
Surge Rating(20s) :36.0KW
Output Waveform :Pure Sine Wave
AC Output Voltage: 120V and 240V
AC Input Voltage:240V
DC Battery Voltage:48Vdc
Solar charger Current:40Amp
AC Battery charger:120±5Amp
Output Voltage Regulation :±10% RMS
Output Frequency :50Hz ± 0.3Hz/60Hz ± 0.3Hz
Typical transfer Time :10ms(Max)

DC Input:

Nominal Input Voltage :48.0Vdc
Minimum Start Voltage :40.0Vdc
Low Battery Alarm :42.0Vdc / 44.0Vdc
Low Battery Trip :40.0Vdc / 42.0Vdc
High Voltage Alarm :64.0Vdc
Low Battery voltage recover :62.0Vdc
Idle Consumption-Search Mode :< 25 W when Power Saver On

Charger:

Output Voltage: Depends on battery type
Max Charge Power Rate: 1/3 Rating Power
Battery Initial Voltage for Start Up: 40-62.8V
Over Charge Protection Shutdown :62.8V
Remote Control :Yes

Bypass & Protection:

Input Voltage Waveform :Sine wave (Grid or Generator)
Nominal Voltage:240Vac
Nominal Input Frequency :50Hz or 60Hz (Auto detect)
Bypass breaker rating:63A

Solar Charger controller:

Rated Voltage :48Vdc
Solar Input Voltage Range: 60-100Vdc
Max.PV Open Circuit Array Voltage:105Vdc
Rated Charge Current :40A
Over Charge Disconnection: 59.2V
Over Charge Recovery :54.4V
Over Discharge Disconnection:43.2 V(default)
Over Discharge Reconnection :49.2V

Mechanical specification:

Inverter Dimensions(L*W*H) :588*415*200mm
Inverter Weight(Solar Chg)KG: 90
Display :LED +LCD
Standard Warranty :1 Year

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
