Description
Specification:
Frequency: FY8300S-60M
Model: 0~60MHz
Sine: 0~60MHz
Square : 0~25MHz
Ramp, Triangle: 0~10MHz
Pulse: 0~10MHz
TTL/CMOS: 0~10MHz
Arbitrary Waveform: 0~10MHz
Minimum Pulse Width: 20ns
Min. Resolution on All Frequency Range: 1?Hz
Accuracy: ±20ppm
Waveform Characteristics:
Waveforms: Sine, Square, Rectangle, Pulse, Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform.
Non-Volatile Storage: Can store 64 user-defined arbitrary waveforms, (8K 14bits)x64
Waveform Length: 8192 points * 14bits
Sample Rate: 250MSa/s
Sine :
Harmonic Suppression: ?50dBc(<1MHz); ?45dBc(1MHz~20MHz);
Total Harmonic Distortion: <0.5% (20Hz~20kHz,0dBm)
Rectangle:
Rise/Fall Time: ?15ns (VPP<5V)
Overshoot: ?5%
Duty Cycle: 0.01%~99.99% (Resolution 0.01%)
Sawtooth Wave:
Linearity: >99% (0.01Hz~10kHz)
General Specifications:
Display: 2.4 inch, TFT Color Display.
Save & Load:
Amount: 12
Position: 01 to 12 (01 for start default value)
Interface:
Type: USB to Serial interface
Protocol: Command line mode, providing communication protocols.
Communicating Speed: 115200bps
Power: Voltage Range:AC100V~240V
Technic: SMD, LSI, Reliable and durable
Buzzer: Can be turned on/off by setting.
Operation: Buttons and knob continuously.
Size: 210x195x75mm/8.27x7.68x2.95in
Package List:

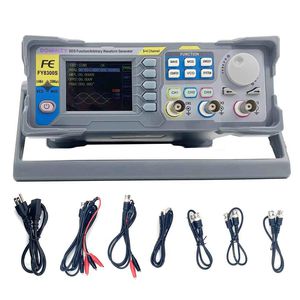

1xDDS Signal Generator
1xPower Cable
1xUSB Data Cable
3xBNC-BNC Cable
3xBNC-Clip Cable
