Description

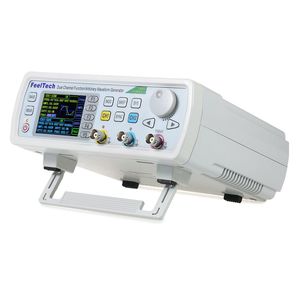

◕‿◕FY6600 series Dual-channel Function Signal generator combines multiple functions in one, such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Analog/Digital Modulator, VCO, Sweep, Counter and Frequency Meter, etc.
◕‿◕Specifications:
★Sine Wave Range(Optional)：0Hz~30MHz / 0Hz~50MHz / 0Hz~60MHz
★Square Wave：0Hz~25MHz
★Triangle Wave/Ramp/Pulse Wave/Arbitrary Waveform：0Hz~10MHz
★TTL/COMS：0Hz~20MHz
★Waveform Types：Sine, Square (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform
★Waveform Length：8192 points * 14bits
★Amplitude(VPP)：Frequency less than 10MHz、Frequency 0MHz~20MHz、Frequency more than 20MHz；1mVpp~20Vpp、1mVpp~10Vpp、1mVpp~5Vpp
★Protection：All channels can work within 60s under load short-circuit condition
★Input Voltage Range：2Vpp~20Vpp
★2 kinds of Coupling Modes: DC and AC
★Sweep Type：Linear Sweep or Logarithm Sweep
★Modulation Signal Range to Input：0~5V
★VCO Signal Frequency Range：0-1000Hz
★Save & Load Amount：20
★Interface Type：USB Serial Interface
★Communication Rate：115200bps
★Technic：SMD, LSI, Reliable and Durable
★Buzzer：Can be turned on/off by setting
★Power Voltage Range：AC100V~240V
★Temperature：0°C~40°C; Humidity：less than 80%
★Size：19.5 * 17.5 * 7cm / 7.67 * 6.9 * 2.75in
★Weight：614g / 21.68oz
★Package Size：24 * 21 * 9.5cm / 9.45 * 8.3 * 3.74in
★Package Weight：95-1058g / 35.08-37.73oz
◕‿◕Package List:
1 * DDS Signal Generator
1 * CD
1 * Power Cable
1 * USB Data Cable
1 * BNC-BNC Cable
2 * BNC-Clip Cable
