Description
Parameter:
1. Working voltage: DC 3.3v~30v
2. Frequency range: 1Hz~150kHz (divided into 4 ranges);
3. Frequency precision: 2% of each range;
4. Signal load capacity: output current is about 5-30mA;
5. Output Amplitude: PWM amplitude equal to the input voltage value
6. Environment Temperature Range: -20~+70℃
7. Duty cycle range: 0-100%.
Application:
1. As square wave signal generator for experimental development;
2. As square wave signal generator for motor driver;
3. As adjustable pulse generator for MCU;
4. As pulse generator, control related circuits (PWM dimming, speed regulating).
Setting Parameters:
There are 4 independent buttons on the module for setting the frequency value and the duty cycle value.
Supports short press (increase or decrease one unit by one unit) and long press (fast increase or decrease).
All setting parameters will be saved when powered off to achieve data guaranteed.
Frequency Display Instruction:
The frequency is divided into 4 ranges and switched automatically.
1. XXX (without decimal point): minimum unit is 1Hz, value range is 1Hz~999Hz.
2. X.XX (the decimal point is in the hundred digit): minimum unit is 0.01kHz, value range is 1.00kHz~9.99kHz.
3. XX.X (the decimal point is in the ten digit): minimum unit is 0.1kHz; value range is 10.0kHz~99.9kHz.
4. X.X.X (full decimal point): the minimum unit is 1kHz; the value range is 1kHz~150kHz
e.g. Frequency displays 100 represents 100Hz; displays 1.01 represents 1.01kHz;
displays 54.1 represents 54.1kHz; displays 1.2.4 represents 124kHz
Package Included:
1x Signal Generator
1. Working voltage: DC 3.3v~30v
2. Frequency range: 1Hz~150kHz (divided into 4 ranges);
3. Frequency precision: 2% of each range;
4. Signal load capacity: output current is about 5-30mA;
5. Output Amplitude: PWM amplitude equal to the input voltage value
6. Environment Temperature Range: -20~+70℃
7. Duty cycle range: 0-100%.
Application:
1. As square wave signal generator for experimental development;
2. As square wave signal generator for motor driver;
3. As adjustable pulse generator for MCU;
4. As pulse generator, control related circuits (PWM dimming, speed regulating).
Setting Parameters:
There are 4 independent buttons on the module for setting the frequency value and the duty cycle value.
Supports short press (increase or decrease one unit by one unit) and long press (fast increase or decrease).
All setting parameters will be saved when powered off to achieve data guaranteed.
Frequency Display Instruction:
The frequency is divided into 4 ranges and switched automatically.
1. XXX (without decimal point): minimum unit is 1Hz, value range is 1Hz~999Hz.
2. X.XX (the decimal point is in the hundred digit): minimum unit is 0.01kHz, value range is 1.00kHz~9.99kHz.
3. XX.X (the decimal point is in the ten digit): minimum unit is 0.1kHz; value range is 10.0kHz~99.9kHz.
4. X.X.X (full decimal point): the minimum unit is 1kHz; the value range is 1kHz~150kHz
e.g. Frequency displays 100 represents 100Hz; displays 1.01 represents 1.01kHz;
displays 54.1 represents 54.1kHz; displays 1.2.4 represents 124kHz
Package Included:
1x Signal Generator

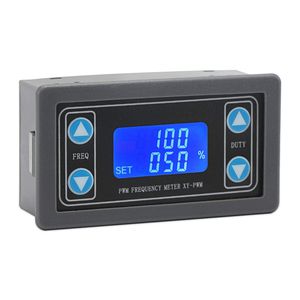

Signal Generator, DROK DC 3.3-30V Function Generator 5-30mA LCD Display PWM Pulse Frequency Duty Cycle Rectangular Wave Square Wave Signal Generator
Current Price
$12.59
Average
$12.59
Min Price
$12.59
Max Price
$12.59
Price dynamics
0%
Description
Parameter:
1. Working voltage: DC 3.3v~30v
2. Frequency range: 1Hz~150kHz (divided into 4 ranges);
3. Frequency precision: 2% of each range;
4. Signal load capacity: output current is about 5-30mA;
5. Output Amplitude: PWM amplitude equal to the input voltage value
6. Environment Temperature Range: -20~+70℃
7. Duty cycle range: 0-100%.
Application:
1. As square wave signal generator for experimental development;
2. As square wave signal generator for motor driver;
3. As adjustable pulse generator for MCU;
4. As pulse generator, control related circuits (PWM dimming, speed regulating).
Setting Parameters:
There are 4 independent buttons on the module for setting the frequency value and the duty cycle value.
Supports short press (increase or decrease one unit by one unit) and long press (fast increase or decrease).
All setting parameters will be saved when powered off to achieve data guaranteed.
Frequency Display Instruction:
The frequency is divided into 4 ranges and switched automatically.
1. XXX (without decimal point): minimum unit is 1Hz, value range is 1Hz~999Hz.
2. X.XX (the decimal point is in the hundred digit): minimum unit is 0.01kHz, value range is 1.00kHz~9.99kHz.
3. XX.X (the decimal point is in the ten digit): minimum unit is 0.1kHz; value range is 10.0kHz~99.9kHz.
4. X.X.X (full decimal point): the minimum unit is 1kHz; the value range is 1kHz~150kHz
e.g. Frequency displays 100 represents 100Hz; displays 1.01 represents 1.01kHz;
displays 54.1 represents 54.1kHz; displays 1.2.4 represents 124kHz
Package Included:
1x Signal Generator
1. Working voltage: DC 3.3v~30v
2. Frequency range: 1Hz~150kHz (divided into 4 ranges);
3. Frequency precision: 2% of each range;
4. Signal load capacity: output current is about 5-30mA;
5. Output Amplitude: PWM amplitude equal to the input voltage value
6. Environment Temperature Range: -20~+70℃
7. Duty cycle range: 0-100%.
Application:
1. As square wave signal generator for experimental development;
2. As square wave signal generator for motor driver;
3. As adjustable pulse generator for MCU;
4. As pulse generator, control related circuits (PWM dimming, speed regulating).
Setting Parameters:
There are 4 independent buttons on the module for setting the frequency value and the duty cycle value.
Supports short press (increase or decrease one unit by one unit) and long press (fast increase or decrease).
All setting parameters will be saved when powered off to achieve data guaranteed.
Frequency Display Instruction:
The frequency is divided into 4 ranges and switched automatically.
1. XXX (without decimal point): minimum unit is 1Hz, value range is 1Hz~999Hz.
2. X.XX (the decimal point is in the hundred digit): minimum unit is 0.01kHz, value range is 1.00kHz~9.99kHz.
3. XX.X (the decimal point is in the ten digit): minimum unit is 0.1kHz; value range is 10.0kHz~99.9kHz.
4. X.X.X (full decimal point): the minimum unit is 1kHz; the value range is 1kHz~150kHz
e.g. Frequency displays 100 represents 100Hz; displays 1.01 represents 1.01kHz;
displays 54.1 represents 54.1kHz; displays 1.2.4 represents 124kHz
Package Included:
1x Signal Generator
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
