Description
Product Description:
Working Voltage: 3.3V-30V
Frequency Range: 1Hz-150KHz Adjustable
Duty Ratio: 0-100% Adjustable
Frequency Accuracy: Approx. 2% in each range
Signal Load Capacity: Output current approx. 5-30ma
Output Amplitude: PWM amplitude is equal to the power supply voltage
Environmental Temperature: -20 to +70 degree Celsius
This PWM Wave Signal Generator Module, adopt LCD display frequency and duty cycle, wide range and high precision of frequency setting, supporting TTL serial port communication.
High frequency resolution: XXX, Frequency Range: 1Hz-999KHz, Display Resolution 1Hz; X.XX, Frequency Range: 1.00Hz-9.99KHz, Display Resolution 0.01kHz; XX.X, Frequency Range: 10.0kHz-99.9kHz, Display Resolution 0.1kHz; X.X.X, Frequency Range: 1kHz-150kHz, Display Resolution 1kHz.
Application:
1. Used as square wave signal generator to generate square wave signal for experimental development and use;
2. Used to generate square wave signal to control the motor driver;
3. Generate adjustable pulse for MCU use;
4. Generate adjustable pulse and control related circuit (PWM dimming and speed regulation, etc.).
Serial Port control (SCM TTL level communication):
Communication Standard: 9600 bps
Data Bit: 8
Stop Bit: 1
Check Bit: None
Flow-Control: None
Set PWM Frequency:
"FXXX": 001Hz-999Hz
"FX.XX": 1.00kHz-9.99kHz
"FXX.X": 10.0kHz-99.9kHz
"FX.X.X": 1kHz-150kHz
Set PWM Duty Ratio:
"DXXX": Set PWM duty ratio to XXX(000-100) (for example, D050, set PWM duty ratio to 50%)
Read Setup Parameters: Send the "read" string
Set Successful Return: DOWN
Set Fail Return: FALL
Package: 1pc PWM Rectangular Wave Signal Generator
Working Voltage: 3.3V-30V
Frequency Range: 1Hz-150KHz Adjustable
Duty Ratio: 0-100% Adjustable
Frequency Accuracy: Approx. 2% in each range
Signal Load Capacity: Output current approx. 5-30ma
Output Amplitude: PWM amplitude is equal to the power supply voltage
Environmental Temperature: -20 to +70 degree Celsius
This PWM Wave Signal Generator Module, adopt LCD display frequency and duty cycle, wide range and high precision of frequency setting, supporting TTL serial port communication.
High frequency resolution: XXX, Frequency Range: 1Hz-999KHz, Display Resolution 1Hz; X.XX, Frequency Range: 1.00Hz-9.99KHz, Display Resolution 0.01kHz; XX.X, Frequency Range: 10.0kHz-99.9kHz, Display Resolution 0.1kHz; X.X.X, Frequency Range: 1kHz-150kHz, Display Resolution 1kHz.
Application:
1. Used as square wave signal generator to generate square wave signal for experimental development and use;
2. Used to generate square wave signal to control the motor driver;
3. Generate adjustable pulse for MCU use;
4. Generate adjustable pulse and control related circuit (PWM dimming and speed regulation, etc.).
Serial Port control (SCM TTL level communication):
Communication Standard: 9600 bps
Data Bit: 8
Stop Bit: 1
Check Bit: None
Flow-Control: None
Set PWM Frequency:
"FXXX": 001Hz-999Hz
"FX.XX": 1.00kHz-9.99kHz
"FXX.X": 10.0kHz-99.9kHz
"FX.X.X": 1kHz-150kHz
Set PWM Duty Ratio:
"DXXX": Set PWM duty ratio to XXX(000-100) (for example, D050, set PWM duty ratio to 50%)
Read Setup Parameters: Send the "read" string
Set Successful Return: DOWN
Set Fail Return: FALL
Package: 1pc PWM Rectangular Wave Signal Generator

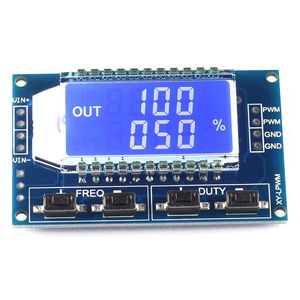

DZS Elec 1-Pack PWM Rectangular Wave Signal Generator 1-150kHz PWM Pulse Frequency Meter 0-100% Duty Ratio Adjustable LCD Display Square Wave Signal Generator
Current Price
$8.99
Average
$8.99
Min Price
$8.99
Max Price
$8.99
Price dynamics
0%
Description
Product Description:
Working Voltage: 3.3V-30V
Frequency Range: 1Hz-150KHz Adjustable
Duty Ratio: 0-100% Adjustable
Frequency Accuracy: Approx. 2% in each range
Signal Load Capacity: Output current approx. 5-30ma
Output Amplitude: PWM amplitude is equal to the power supply voltage
Environmental Temperature: -20 to +70 degree Celsius
This PWM Wave Signal Generator Module, adopt LCD display frequency and duty cycle, wide range and high precision of frequency setting, supporting TTL serial port communication.
High frequency resolution: XXX, Frequency Range: 1Hz-999KHz, Display Resolution 1Hz; X.XX, Frequency Range: 1.00Hz-9.99KHz, Display Resolution 0.01kHz; XX.X, Frequency Range: 10.0kHz-99.9kHz, Display Resolution 0.1kHz; X.X.X, Frequency Range: 1kHz-150kHz, Display Resolution 1kHz.
Application:
1. Used as square wave signal generator to generate square wave signal for experimental development and use;
2. Used to generate square wave signal to control the motor driver;
3. Generate adjustable pulse for MCU use;
4. Generate adjustable pulse and control related circuit (PWM dimming and speed regulation, etc.).
Serial Port control (SCM TTL level communication):
Communication Standard: 9600 bps
Data Bit: 8
Stop Bit: 1
Check Bit: None
Flow-Control: None
Set PWM Frequency:
"FXXX": 001Hz-999Hz
"FX.XX": 1.00kHz-9.99kHz
"FXX.X": 10.0kHz-99.9kHz
"FX.X.X": 1kHz-150kHz
Set PWM Duty Ratio:
"DXXX": Set PWM duty ratio to XXX(000-100) (for example, D050, set PWM duty ratio to 50%)
Read Setup Parameters: Send the "read" string
Set Successful Return: DOWN
Set Fail Return: FALL
Package: 1pc PWM Rectangular Wave Signal Generator
Working Voltage: 3.3V-30V
Frequency Range: 1Hz-150KHz Adjustable
Duty Ratio: 0-100% Adjustable
Frequency Accuracy: Approx. 2% in each range
Signal Load Capacity: Output current approx. 5-30ma
Output Amplitude: PWM amplitude is equal to the power supply voltage
Environmental Temperature: -20 to +70 degree Celsius
This PWM Wave Signal Generator Module, adopt LCD display frequency and duty cycle, wide range and high precision of frequency setting, supporting TTL serial port communication.
High frequency resolution: XXX, Frequency Range: 1Hz-999KHz, Display Resolution 1Hz; X.XX, Frequency Range: 1.00Hz-9.99KHz, Display Resolution 0.01kHz; XX.X, Frequency Range: 10.0kHz-99.9kHz, Display Resolution 0.1kHz; X.X.X, Frequency Range: 1kHz-150kHz, Display Resolution 1kHz.
Application:
1. Used as square wave signal generator to generate square wave signal for experimental development and use;
2. Used to generate square wave signal to control the motor driver;
3. Generate adjustable pulse for MCU use;
4. Generate adjustable pulse and control related circuit (PWM dimming and speed regulation, etc.).
Serial Port control (SCM TTL level communication):
Communication Standard: 9600 bps
Data Bit: 8
Stop Bit: 1
Check Bit: None
Flow-Control: None
Set PWM Frequency:
"FXXX": 001Hz-999Hz
"FX.XX": 1.00kHz-9.99kHz
"FXX.X": 10.0kHz-99.9kHz
"FX.X.X": 1kHz-150kHz
Set PWM Duty Ratio:
"DXXX": Set PWM duty ratio to XXX(000-100) (for example, D050, set PWM duty ratio to 50%)
Read Setup Parameters: Send the "read" string
Set Successful Return: DOWN
Set Fail Return: FALL
Package: 1pc PWM Rectangular Wave Signal Generator
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
