Description
All the products are shipped from US warehouse(CA or NJ)!
All the products are shipped from US warehouse(CA or NJ)!
All the products are shipped from US warehouse(CA or NJ)!
Specifications:
- Frequency ranges:
A: 100 KHz to 300 KHz
B: 300 KHz to 1MHz
C: 1MHz to 3.2MHz
D: 3MHz to 10MHz
E: 10MHz to 35MHz
F: 32MHz to 150MHz
- Frequency range: 100 KHz to 150MHz (3 harmonic wave up to 450MHz)
- Frequency accuracy: Over±5%
- Output waveform: RF/AM signal waveform
- Output impedance: 600Ω
- Radio frequency output: Over 100Mv rms (when frequency ≤ 35MHz)
- Level control: 1mV to100mV
- External modulation: 150Hz to 1.5 KHz. Amplitude from 0 to 30% adjustable.
- Norml operation: 50Hz to 20 KHz for any setting.
- Temperature/Humidity: 10 oC to 35 oC/with 85%RH
- Power supply: 110V+/-10%, 50Hz/60Hz
- Dimensions: 239*140*200mm
- Weight: about 2.5kg
Features:
- Complete technologies of Japanese electrical equipment and assembly with imported components ensure minimum accuracy deviation.
- Signal frequency: 100 kHz to 150MHz, 3 harmonic up to 450MHz.
- Output wave form: sine and amplitude modulation wave.
- RF/AM output, max, intensity≥10VP-P.
- External modulation signal can be set between 50Hz to 20 KHz.
Package included:
- 1x 110V Signal Generator
- 1x Power Cord
- 1x Clip cable
- 1x Instruction manual
All the products are shipped from US warehouse(CA or NJ)!
All the products are shipped from US warehouse(CA or NJ)!
Specifications:
- Frequency ranges:
A: 100 KHz to 300 KHz
B: 300 KHz to 1MHz
C: 1MHz to 3.2MHz
D: 3MHz to 10MHz
E: 10MHz to 35MHz
F: 32MHz to 150MHz
- Frequency range: 100 KHz to 150MHz (3 harmonic wave up to 450MHz)
- Frequency accuracy: Over±5%
- Output waveform: RF/AM signal waveform
- Output impedance: 600Ω
- Radio frequency output: Over 100Mv rms (when frequency ≤ 35MHz)
- Level control: 1mV to100mV
- External modulation: 150Hz to 1.5 KHz. Amplitude from 0 to 30% adjustable.
- Norml operation: 50Hz to 20 KHz for any setting.
- Temperature/Humidity: 10 oC to 35 oC/with 85%RH
- Power supply: 110V+/-10%, 50Hz/60Hz
- Dimensions: 239*140*200mm
- Weight: about 2.5kg
Features:
- Complete technologies of Japanese electrical equipment and assembly with imported components ensure minimum accuracy deviation.
- Signal frequency: 100 kHz to 150MHz, 3 harmonic up to 450MHz.
- Output wave form: sine and amplitude modulation wave.
- RF/AM output, max, intensity≥10VP-P.
- External modulation signal can be set between 50Hz to 20 KHz.
Package included:
- 1x 110V Signal Generator
- 1x Power Cord
- 1x Clip cable
- 1x Instruction manual

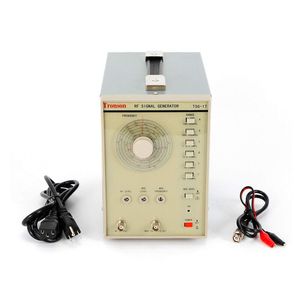

RF Signal Generator High Frequency Radio Frequency Signal Generator Counter Arbitrary Waveform Frequency Meter 100KHz-150MHz 600Ω 110V
