Description
Specification:
★Model：FY6900-60M
★Sine：0~60MHz
★Square：0~25MHz
★Ramp, Triangle, Pulse, TTL/CMOS, Arbitrary Waveform：0~10MHz
★Waveforms：Sine, Square, Rectangle (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform.
★Non-Volatile Storage：Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64
★Sampling Rate：250MSa/s
★Sine Harmonic Suppression：≥50dBc(<1MHz); ≥45dBc(1MHz~20MHz)
★Amplitude（VPP）：Frequency≤5MHz: 1mVpp~24Vpp; 5MHz~10MHz: 1mVpp~20Vpp; Frequency>20MHz: 1mVpp~5Vpp;
★Input Voltage Range：1Vpp~20Vpp
★Range：0.01Hz~100MHz
★Sweep Type：Linear or Logarithm
★Sweep Objects：Frequency, Amplitude, Offset, Duty Cycle
★VCO control object：voltage controlling frequency (VCF), voltage controlling amplitude (VCA), voltage controlling offset, voltage controlling duty cycle.
★VCO special function：Can Amplitude Modulate (AM) or Frequency Modulate (FM) by external analog signal.
★Modulation Type：AM, FM, PM, ASK, FSK, PSK
★Display Type：2.4 inch, TFT Color Display.
★Save & Load Amount：20
★Interface Type：USB to Serial interface
★Communicating Speed：9600bps (Industrial standard)
★Power Voltage Range：AC100V~240V
★Item Size：Approx. 210mm * 195mm * 75mm / 8.27 * 7.68 * 2.96 (L * W * H)
★Item Weight：Approx. 611g / 21.56oz
★Package Weight：Approx. 1065g / 37.51oz(Main engine, accessories and packing materials)
Package List:

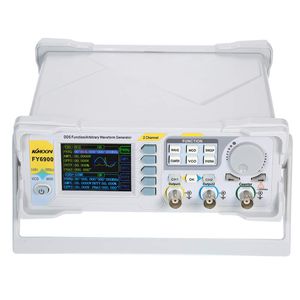

1 * DDS Signal Generator
1 * Power Cable
1 * USB Data Cable
1 * BNC-BNC Cable
2 * BNC-Clip Cable
