Features:

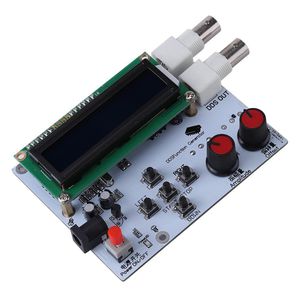

This is a function (waveform) signal generator designed with1602 LCD screen and intuitive 5 buttons. It can produce some specific periodic time function waveform (sine, square, triangle, sawtooth, and pulse wave, etc.) signal. The frequency range from a few Hz to tens of MHz micro-function signal generator circuit experiments and equipment detection of a very wide range of applications. DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers. The power automatically restores the last used configuration.
Specification:
Board Color: White, Black (Optional)
Operating Voltage: DC7V-9V
Size: Approx. 100*80mm (Length*width)
Template Thickness: 2mm
DDS Frequency Range: 1HZ-65534Hz.
High-speed Frequency (HS) Square Wave: 1MHz/2MHz/4MHz/8MHz
DDS Signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, ECG wave and noise wave
Section into the Value: 1,10,100,1000,10000 Hz
Offset: 0.5pp-5Vpp
Amplitude Amount: 0.5Vpp-14Vpp
Output Impedance: 20-200 ohms
Buttons Functions:
UP: Output waveform select
DOWN: Output waveform select
LEFT: Output frequency -
RIGHT: Output frequency +
START/STOP: Output stop / start
Package Includes:
1 x Signal Generator Module
