Description
Frequency range: X1 range:10Hz-100Hz X10 range:100Hz-1KHz X100range: 1KHz-10KHz X1K range:10KHZ-100KHz X10K range:100KHz-1MHz Sine wave characteristics Output voltage: 5V rms or more Output distortion: 400Hz-20KHz, 0.1% or less (X100 range for 1KHz) 50Hz-500KHz 0.5% or less OutputFlatness: ±1.5 dB (refer to 1KHz) Square wave characteristics: Output voltage: 10Vp.p or more Rise time: 0.25 us or less Duty ratio: 50%±5%(referto1KHz) External synchronization characteristics Range±3% of oscillator frequency Inpu impedance: 10K approximate Maxi mun input: 10V rms Output characteristics: Impedance: 600Ω±10% Attenuator: 0dB, -10dB, -20dB, -30dB, -40dB, and -50dB in 6 steps (accuracy +1 dB at 600Ω load) Input: AC 110V or 220V, 50/60Hz Consumption: 5 Watt Dimension:142(w)*233(D)*197(H) mm Weight:3.5Kg

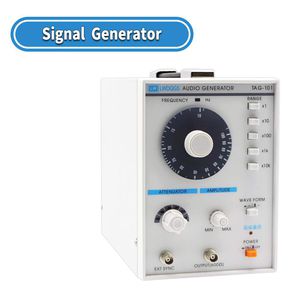

Signal Generator,LONGWEI Low Frequency Signal Generator Audio Signal Generator Signal Source 10Hz-1MHz TAG-101 110V (US Plug)
Current Price
$82.99
Average
$81.49
Min Price
$79.99
Max Price
$82.99
Price dynamics
2%
Description
Frequency range: X1 range:10Hz-100Hz X10 range:100Hz-1KHz X100range: 1KHz-10KHz X1K range:10KHZ-100KHz X10K range:100KHz-1MHz Sine wave characteristics Output voltage: 5V rms or more Output distortion: 400Hz-20KHz, 0.1% or less (X100 range for 1KHz) 50Hz-500KHz 0.5% or less OutputFlatness: ±1.5 dB (refer to 1KHz) Square wave characteristics: Output voltage: 10Vp.p or more Rise time: 0.25 us or less Duty ratio: 50%±5%(referto1KHz) External synchronization characteristics Range±3% of oscillator frequency Inpu impedance: 10K approximate Maxi mun input: 10V rms Output characteristics: Impedance: 600Ω±10% Attenuator: 0dB, -10dB, -20dB, -30dB, -40dB, and -50dB in 6 steps (accuracy +1 dB at 600Ω load) Input: AC 110V or 220V, 50/60Hz Consumption: 5 Watt Dimension:142(w)*233(D)*197(H) mm Weight:3.5Kg
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
