Description
Specifications:
Sine Wave Range(Optional)0Hz~15MHz0Hz~30MHz0Hz~40MHz
Square Wave Range0Hz~15MHz0Hz~15MHz0Hz~15MHz
Pulse Wave Range0Hz~6MHz0Hz~6MHz0Hz~6MHz
Square Wave Rise Time≤25ns≤20ns≤20ns
Min. Frequency Resolution0.01µHz(0.00000001Hz)
Waveform TypesSine/Triangle/Square/Pulse(duty-cycle adjustable)/Partial Sine/CMOS/DC Level/Half-wave/Full-wave/Pos-Ladder/Neg- Ladder/Noise/Exponential Rise/Exponential Fall/Tone/Sinc Pulse/Lorentz Pulse, and 60 kinds of user defined waveforms
Waveform Length2048 Points
Waveform Sampling Rate200MSa/s
Waveform Vertical Resolution14 Bits
Sine WaveHarmonic Suppression≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)
Total Harmonic Distortion<0.8%(20Hz~20KHz, 0dBm)
Square and Pulse WaveOvershoot(Square)≤5%
Duty-cycle Range(Pulse)0.1%~99.9%
Sawtooth WaveLinearity≥98%(0.01Hz~10kHz)
Output Paramaters
Amplitude RangeFrequency≤10MHz10MHzFrequency>30MHz
0Vpp~20Vpp0Vpp~10Vpp0Vpp~5Vpp
Amplitude Resolution1mV
Amplitude Stability+/-0.5%/5H
Amplitude Flatness+/-5%(<10MHz); +/-10%(>10MHz)
Waveform Output
Output Impedance50Ω +/-10% (Typical)
ProtectionAll the signal output ternianls can work within 60s under load short-circuit condition.
Offset RangeOutput Amplitude>4V0.4V
Offset Resolution0.01V
Phase Range0~359.9°
Phase Resolution0.1°
TTL/COMS Output
Low Level<0.3V
High Level1V~10V
Level Rise/Fall Time≤20ns
Frequency MeterFrequency Range1Hz~100MHz
AccuracyGate time continuously adjusted between 0.01s~10s
CounterCounting Range0~4294967295
Coupling Mode2 kinds of Coupling Modes: DC and AC
Input Signal Voltage Range2Vpp~20Vpp
Pulse Width Measurement0.01ns Resolution, 20s MAX. Measuring Time
Period Measurement0.01ns Resolution, 20s MAX.
Sine Wave Range(Optional)0Hz~15MHz0Hz~30MHz0Hz~40MHz
Square Wave Range0Hz~15MHz0Hz~15MHz0Hz~15MHz
Pulse Wave Range0Hz~6MHz0Hz~6MHz0Hz~6MHz
Square Wave Rise Time≤25ns≤20ns≤20ns
Min. Frequency Resolution0.01µHz(0.00000001Hz)
Waveform TypesSine/Triangle/Square/Pulse(duty-cycle adjustable)/Partial Sine/CMOS/DC Level/Half-wave/Full-wave/Pos-Ladder/Neg- Ladder/Noise/Exponential Rise/Exponential Fall/Tone/Sinc Pulse/Lorentz Pulse, and 60 kinds of user defined waveforms
Waveform Length2048 Points
Waveform Sampling Rate200MSa/s
Waveform Vertical Resolution14 Bits
Sine WaveHarmonic Suppression≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz)
Total Harmonic Distortion<0.8%(20Hz~20KHz, 0dBm)
Square and Pulse WaveOvershoot(Square)≤5%
Duty-cycle Range(Pulse)0.1%~99.9%
Sawtooth WaveLinearity≥98%(0.01Hz~10kHz)
Output Paramaters
Amplitude RangeFrequency≤10MHz10MHzFrequency>30MHz
0Vpp~20Vpp0Vpp~10Vpp0Vpp~5Vpp
Amplitude Resolution1mV
Amplitude Stability+/-0.5%/5H
Amplitude Flatness+/-5%(<10MHz); +/-10%(>10MHz)
Waveform Output
Output Impedance50Ω +/-10% (Typical)
ProtectionAll the signal output ternianls can work within 60s under load short-circuit condition.
Offset RangeOutput Amplitude>4V0.4V
Offset Resolution0.01V
Phase Range0~359.9°
Phase Resolution0.1°
TTL/COMS Output
Low Level<0.3V
High Level1V~10V
Level Rise/Fall Time≤20ns
Frequency MeterFrequency Range1Hz~100MHz
AccuracyGate time continuously adjusted between 0.01s~10s
CounterCounting Range0~4294967295
Coupling Mode2 kinds of Coupling Modes: DC and AC
Input Signal Voltage Range2Vpp~20Vpp
Pulse Width Measurement0.01ns Resolution, 20s MAX. Measuring Time
Period Measurement0.01ns Resolution, 20s MAX.

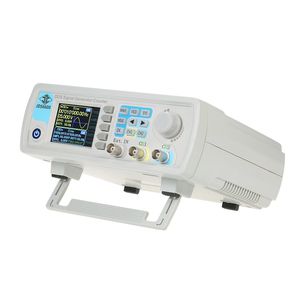

Signal Generator, KKmoon 40MHz Function Signal Generator Dual-Channel DDS Arbitrary Waveform Pulse Signal Generator 1Hz-100MHz Frequency Meter
