Description
wiki information: https://www.dfrobot.com/wiki/index.php/Gravity:_Analog_Electrical_Conductivity_Sensor_/_Meter_V2_(K%3D1)_SKU:DFR0300
APPLICATIONS
Water quality monitoring.
Aquaculture.
Hydroponic & Aquaponic.
Tips:
In order to ensure the measurement accuracy, it is strongly recommended to add a temperature sensor to measure the temperature, and achieve automatic temperature compensation. DS18B20 waterproof temperature sensor can also be used.
Attention:
1.The probe is a laboratory-grade probe. Do not immerse in liquid for a long time. Otherwise this will shorten the life of the probe.
2.Platinum black layer is attached to the surface of the sheet metal in the probe.It should avoid any object touching it. It can only be washed with distilled water, otherwise the platinum black layer will be damaged, resulting in inaccurate measurement.
SPECIFICATION
Signal Conversion Board (Transmitter) V2
Supply Voltage: 3.0~5.0V
Output Voltage: 0~3.4V
Probe Connector: BNC
Signal Connector: PH2.0-3Pin
Measurement Accuracy: ±5% F.S.
Board size: 42mm*32mm/1.65in*1.26in
Electrical Conductivity Probe
Probe Type: Laboratory Grade
Cell Constant: 1.0
Support Detection Range: 0~20ms/cm
Recommended Detection Range: 1~15ms/cm
Temperature Range: 0~40°C
Probe Life: >0.5 year (depending on frequency of use)
Cable Length: 100cm

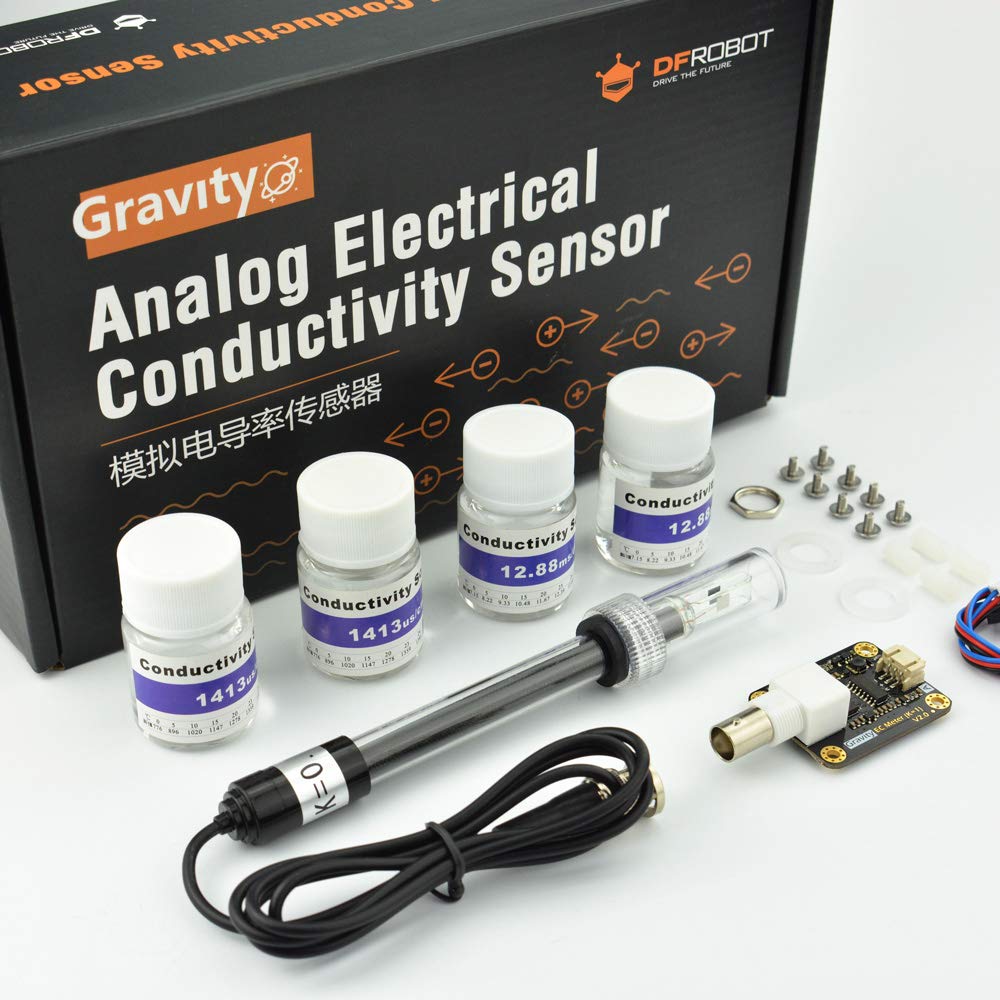

SHIPPING LIST
Electrical Conductivity Probe(K=1,Laboratory Grade) x1
Signal Conversion Board (Transmitter) V2 x1
Standard Buffer Solution 1413us/cm x2
Standard Buffer Solution 12.88ms/cm x2
Gravity Analog Sensor Cable x1
Waterproof Gasket x2
Screw Cap for BNC Connector x1
M3 * 10 nylon pillar x4
M3 * 5 screw x8
APPLICATIONS
Water quality monitoring.
Aquaculture.
Hydroponic & Aquaponic.
Tips:
In order to ensure the measurement accuracy, it is strongly recommended to add a temperature sensor to measure the temperature, and achieve automatic temperature compensation. DS18B20 waterproof temperature sensor can also be used.
Attention:
1.The probe is a laboratory-grade probe. Do not immerse in liquid for a long time. Otherwise this will shorten the life of the probe.
2.Platinum black layer is attached to the surface of the sheet metal in the probe.It should avoid any object touching it. It can only be washed with distilled water, otherwise the platinum black layer will be damaged, resulting in inaccurate measurement.
SPECIFICATION
Signal Conversion Board (Transmitter) V2
Supply Voltage: 3.0~5.0V
Output Voltage: 0~3.4V
Probe Connector: BNC
Signal Connector: PH2.0-3Pin
Measurement Accuracy: ±5% F.S.
Board size: 42mm*32mm/1.65in*1.26in
Electrical Conductivity Probe
Probe Type: Laboratory Grade
Cell Constant: 1.0
Support Detection Range: 0~20ms/cm
Recommended Detection Range: 1~15ms/cm
Temperature Range: 0~40°C
Probe Life: >0.5 year (depending on frequency of use)
Cable Length: 100cm
SHIPPING LIST
Electrical Conductivity Probe(K=1,Laboratory Grade) x1
Signal Conversion Board (Transmitter) V2 x1
Standard Buffer Solution 1413us/cm x2
Standard Buffer Solution 12.88ms/cm x2
Gravity Analog Sensor Cable x1
Waterproof Gasket x2
Screw Cap for BNC Connector x1
M3 * 10 nylon pillar x4
M3 * 5 screw x8
