Description

Oscilloscope Functions:
Horizontal
Sample Rate Range: 250MSa/s(Single-channel), 125MSa/s(Dual-channel)
Waveform Interpolation: (sin x)/x
Record Length: Max. 6K for single-channel; 3K samples per dual-channel
SEC/DIV Range: 5ns/div~500s/div 1, 2, 5 sequence Vertical
A/D Converter: 8-bit resolution,each channel sampled simultaneously
VOLTS/DIV Range: 10mV/div~10V/divat input BNC Bandwidth Limit, typical: 20MHz
Low Frequency Response (-3db): ≤10Hz at BNC Rise Time at BNC, typical: ≤5ns
DC Gain Accuracy: ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Acquisition Modes: Normal
Trigger
Type: Edge
Mode: Auto, Normal, single
Level: ±4 divisions from center of screen
Trigger Level Accuracy: 0.2div X volts/div within ±4 divisions from center of screen
Slope: Rising, Falling, Rising & Falling
Source: CH1/CH2

Input
Coupling: DC, AC or GND
Input Impedance,DC coupled: 25pF±3 pF, 1MΩ±2% Probe Attenuation: 1X, 10X
Supported Probe Attenuation Factors: 1X, 10X, 100X, 1000X
Maximum Input Voltage: 150VRMS
Measurement
CursorVoltage difference between cursors: △V; Time difference between cursors: △T
Automatic Measurements: Frequency, Amplitude DMM
Maximum Resolution: 4000 Counts
DMM Testing Modes: Voltage,Current,Resistance,Capacitance,Diode &On-Off
Maximum Input VoltageAC:600V, DC: 800V
Maximum Input CurrentAC: 10A, DC:10A
Input Impedance: 10MΩ
Diode: 0V~2.0V
On-Off: <50Ω

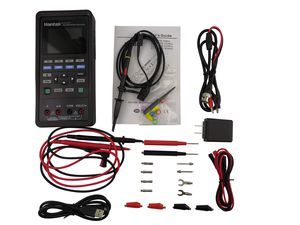

Standard Accessories:
1 x Probe
1 x Clip Probe
1 x Type Charging Cable
1x Power Adapter Multimeter
1 x Probe
1x Replaceable Test Wires Probes set

Hantek 2C72 Handheld Oscilloscope 70MHz Multimeter 2CH+DMM 2 in 1 Multifunction Tester

Get price

Current Price

$159.99

Average

$159.99

Min Price

$159.99

Max Price

$159.99
