Description
Features: - Portable and lightweight - 200M sampling rate @ full channels - Large sampling depth and support compression - The built-in PWM generator - Compatible USB2.0/3.0 interface - Powerful software and easy to use - Support online upgrade automatically Specification: - Input channels number: 16 - Max sampling rate: 200M - Measurement bandwidth: 40M - Min pulse width can be captured: 12.5ns - Hardware memory size: 1Gbits - Hardware sampling depth: 50M/channel - Max compressed depth: 10G/channel - Input voltage range: -50V ~ +50V - Input impedance: 220KΩ, 12pF - Adjustable threshold voltage: -4V ~ +4V, step: 0.01V - PWM channels number: 2 - PWM frequency range: 0.1 ~ 20MHz - PWM frequency adjust step: 10ns - PWM pulse width adjust step: 5ns - PWM output voltage: +3.3V - PWM output impedance: 50Ω - Standby current: 150mA - Max operating current: 300mA - Dimensions: 95mm * 55mm * 23mm - Support OS: Windows XP, Vista, Windows 7/8/10(32bit/64bit) - Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc... Packing List: - 1 x LA2016 Logic Analyzer - 3 x 9P Wire - 2 x 2P Wire - 20 x Test Hook Clip - 1 x USB2.0 Cable - 1 x CD-ROM

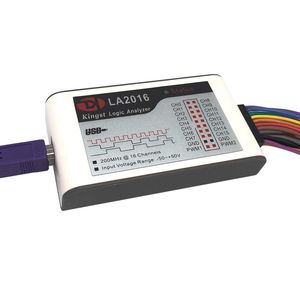

Inno-Maker LA2016 USB Logic Analyzer Full 16 Channels 200MHz Sampling Rate with The English PC Software Handheld Instrument, Support Windows (32bit/64bit),Mac OS,Linux
Price is below average
Current Price
$129.99
Average
$147.32
Min Price
$129.99
Max Price
$149.99
Price dynamics
12%
Description
Features: - Portable and lightweight - 200M sampling rate @ full channels - Large sampling depth and support compression - The built-in PWM generator - Compatible USB2.0/3.0 interface - Powerful software and easy to use - Support online upgrade automatically Specification: - Input channels number: 16 - Max sampling rate: 200M - Measurement bandwidth: 40M - Min pulse width can be captured: 12.5ns - Hardware memory size: 1Gbits - Hardware sampling depth: 50M/channel - Max compressed depth: 10G/channel - Input voltage range: -50V ~ +50V - Input impedance: 220KΩ, 12pF - Adjustable threshold voltage: -4V ~ +4V, step: 0.01V - PWM channels number: 2 - PWM frequency range: 0.1 ~ 20MHz - PWM frequency adjust step: 10ns - PWM pulse width adjust step: 5ns - PWM output voltage: +3.3V - PWM output impedance: 50Ω - Standby current: 150mA - Max operating current: 300mA - Dimensions: 95mm * 55mm * 23mm - Support OS: Windows XP, Vista, Windows 7/8/10(32bit/64bit) - Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc... Packing List: - 1 x LA2016 Logic Analyzer - 3 x 9P Wire - 2 x 2P Wire - 20 x Test Hook Clip - 1 x USB2.0 Cable - 1 x CD-ROM
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
