Description

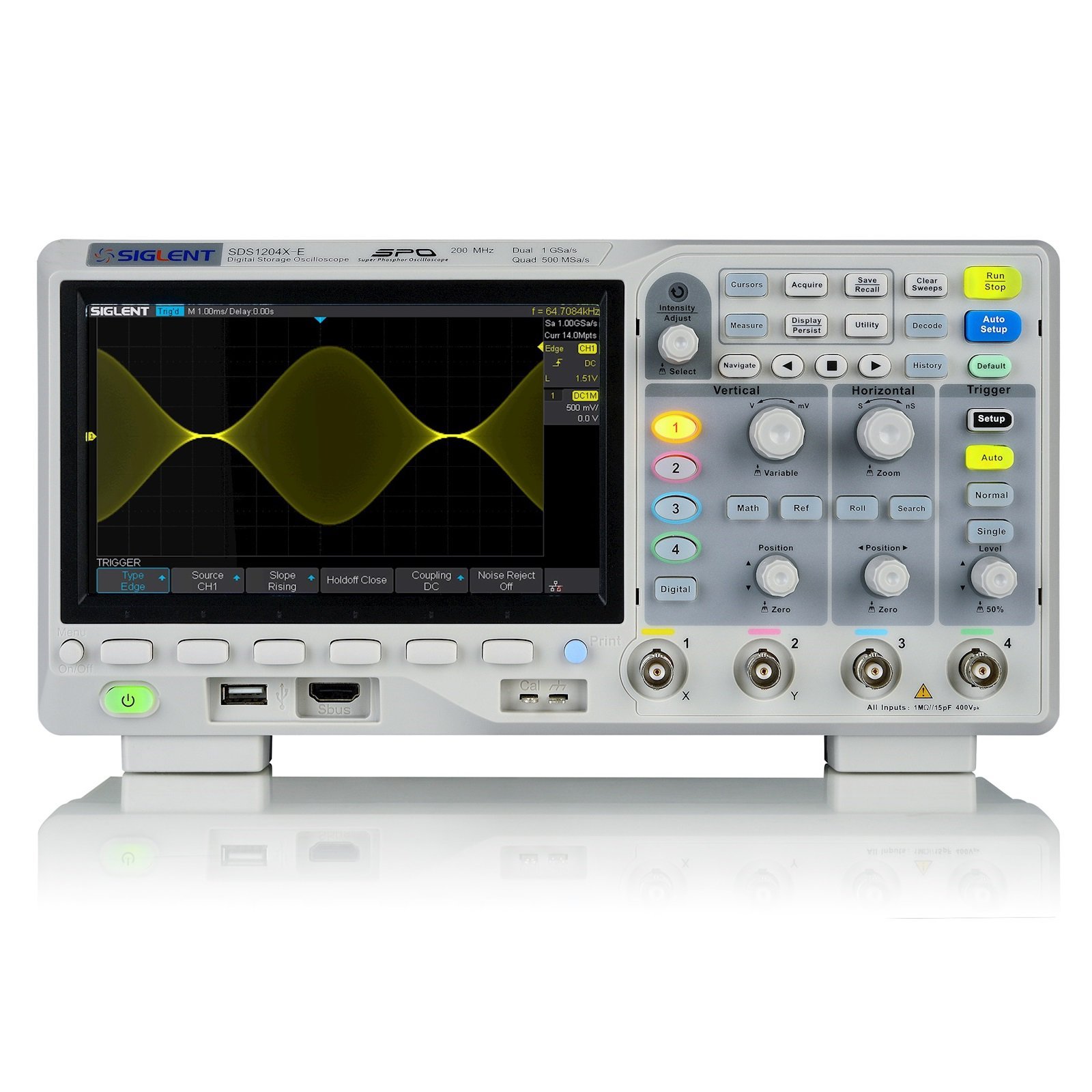

SIGLENT SDS1204X-E is a dual-channel Super Phosphor Oscilloscope with 200 MHz bandwidth, 1 GSa/s sample rate, and a standard record length of 14 Mpts.
Features
• New generation of SPO (Super Phosphor Oscilloscope) technology
• Low background noise, supports 500 μV/div to 10 V/div voltage scales
• 38 automatic measurement functions
• Supports Statistics calculations, Zoom measurement, Gating measurement, Math measurement, History measurement, Ref measurement
• Waveform math functions (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
• High Speed hardware based Pass/Fail function
• Abundant interfaces: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Ext Trigger
• Supports multi-language display and embedded online help
Technical Specifications
• Bandwidth: 200 MHz
• Channels: 4
• Real-time sampling rate: 1 GSa/s
• Memory depth: 14 Mpts/CH (Single-Channel); 7 Mpts/CH (Dual-Channel)
• Waveform capture rate: 400,000 wfms/s (Sequence Mode)
• Trigger types: Edge, Slope, Pulse, Window, Runt, Interval, Time out (Dropout), Pattern, Video
• Vertical resolution: 500 μV/div to 10 V/div
• Math Operators: Addition, subtraction, multiplication, division, FFT, differential, integral, square root
• FFT processing: 1 Mpts
• Decoding: I2C, SPI, UART/RS232, CAN and LIN
• Interfaces: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Ext Trigger
• Display: 7'' display (800×480 pixels)
• Power: AC 100-240 V, 45 Hz - 440 Hz, 50 VA Max
Package Contents
1. SIGLENT SDS1204X-E Super Phosphor Oscilloscope - 1 pc.
2. Passive Probe 1x 10x - 2 pcs.
3. USB Cable - 1 pc.
4. Power Cord - 1 pc.
5. User Guide - 1 pc.
6. CD (Includes User Manual and EasyScopeX software) - 1 pc.
