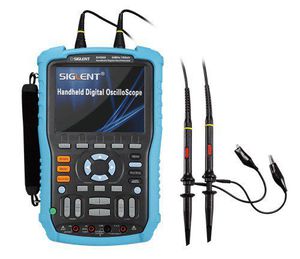

The Siglent SHS806 is a 60MHz handheld, two-channel digital oscilloscope for viewing electrical signals and has a 6,000-count multimeter mode for measuring AC and DC voltage. The oscilloscope has a real-time sample rate of 1GS/s and a record length of 2Mpts for acquiring detailed waveforms. Four math functions plus FFT (fast fourier transform), and automatic and cursor measurements allow an in-depth analysis of waveforms. Edge, Pulse, Video, Slope, and Alternative triggers allow isolation of specific signals. The oscilloscope's automatic triggering recognizes signal patterns and optimizes triggering, timebase and amplitude settings. The oscilloscope has a recorder that captures up to 18 hours of waveforms.

Additional specifications include a rise time of 5.8ns. The unit has a 5.7" color TFT-LCD. The oscilloscope has a USB host port for storing data on a 4GB-maximum flash drive and a USB device port for connecting to a compatible PC. Operating menus and help display in Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Portuguese, Spanish, Japanese, Korean, and Italian languages. The unit operates on a rechargeable battery pack or a 100 to 240V AC, 50/60Hz adapter/charger (both included). It meets CAT II 300V and CAT III 300V safety standards.

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from f
