Description

Featuers
3 in 1 Dual Channel Oscilloscope + Waveform Generator + Multimeter
250M Sampling rate, 40MHZ Bandwidth.
10MV-10V Vertical resolution
Minimalist keyboard design simplify operation，easy to use
Auto automatic measuring function
Key tone settings
Color highlight LCD screen,legible even in bright sunligh
Adjustable backlight brightness, backlight
Auto power off
Digital voltmeter function.

Specification
Sample Rate Range: 250MSa/s(Single-channel), 125MSa/s(Dual-channel)
Waveform Interpolation: (sin x)/x
Record Length: Max. 6K for single-channel; 3K samples per dual-channel
SEC/DIV Range: 5ns/div~500s/div 1, 2, 5 sequence
A/D Converter: 8-bit resolution,each channel sampled simultaneously
VOLTS/DIV Range: 10mV/div~10V/divat input BNC
Bandwidth Limit, typical: 20MHz
Low Frequency Response (-3db): ≤10Hz at BNC
Rise Time at BNC, typical: ≤5ns
DC Gain Accuracy : ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Mode : Auto, Normal, single
Level : ±4 divisions from center of screen
Slope : Rising, Falling, Rising & Falling
Source : CH1/CH2
Supported Probe Attenuation Factors: 1X, 10X, 100X, 1000X
Maximum Input Voltage: 150VRMS

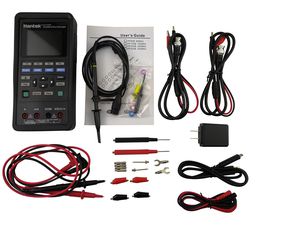

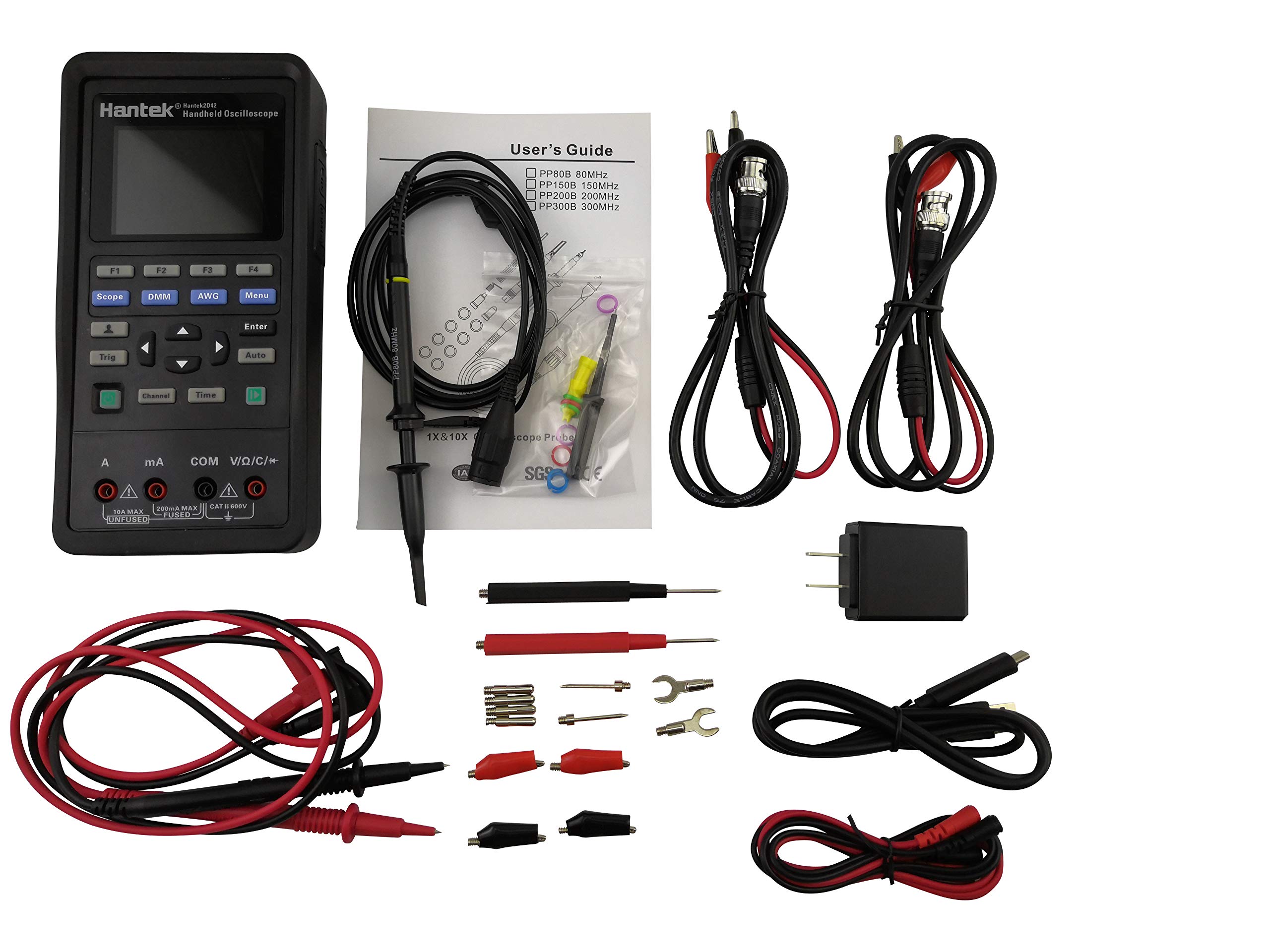

Standard Accessories:
1 * 3-in-1 Oscilloscope
2 * Clip Probes
1 * Test Probe
1 * Power Adapter
1 * USB Type-C Charging Cable
1 * Multimeter Probe
1 * Storage Bag and Manufacturer Certificate
1* Replaceable Test Wires Probes set

Hantek2D42 Handheld Oscilloscope 40MHz Waveform Generator Multimeter 3 in 1 Multifunction Tester 2CH+AFG+DMM

Get price

Current Price

$169.99

Average

$169.99

Min Price

$169.99

Max Price

$169.99
