Description
Full assembled, NOT DIY KIT! Contains only the basical oscilloscope functions with no fancy features. Simplicity in structure and easiness in assembly/operation are among the main targets of the design. For these purpose, uses mostly through-hole parts. The heart is a Cortex-M3 ARM processor (STM32F103C8) from ST. Using a 2.4-inch TFT LCD (320 X 240 dotmatrix, 262K colors) as its display element and displays clear waveform. Detail assemble instructions are provided in combination with troubleshooting guide and schemata. Source codes are also available to allow user to add their own features. Features: Analog bandwidth: 0 - 200KHz Sampling rate: 1Msps max Sensitivity: 10mV/Div - 5V/Div Sensitivity error: < 5% Vertical resolution: 12-bit Timebase: 10us/Div - 500s/Div Record length: 1024 points Built-in 1KHz/3.3V test signal Waveform frozen (HOLD) function available Package included: 1 * Digital Oscilloscope Kit 1 * Probe 1* User Manual(English) NOTE: 9V DC power supply required and Not Included.

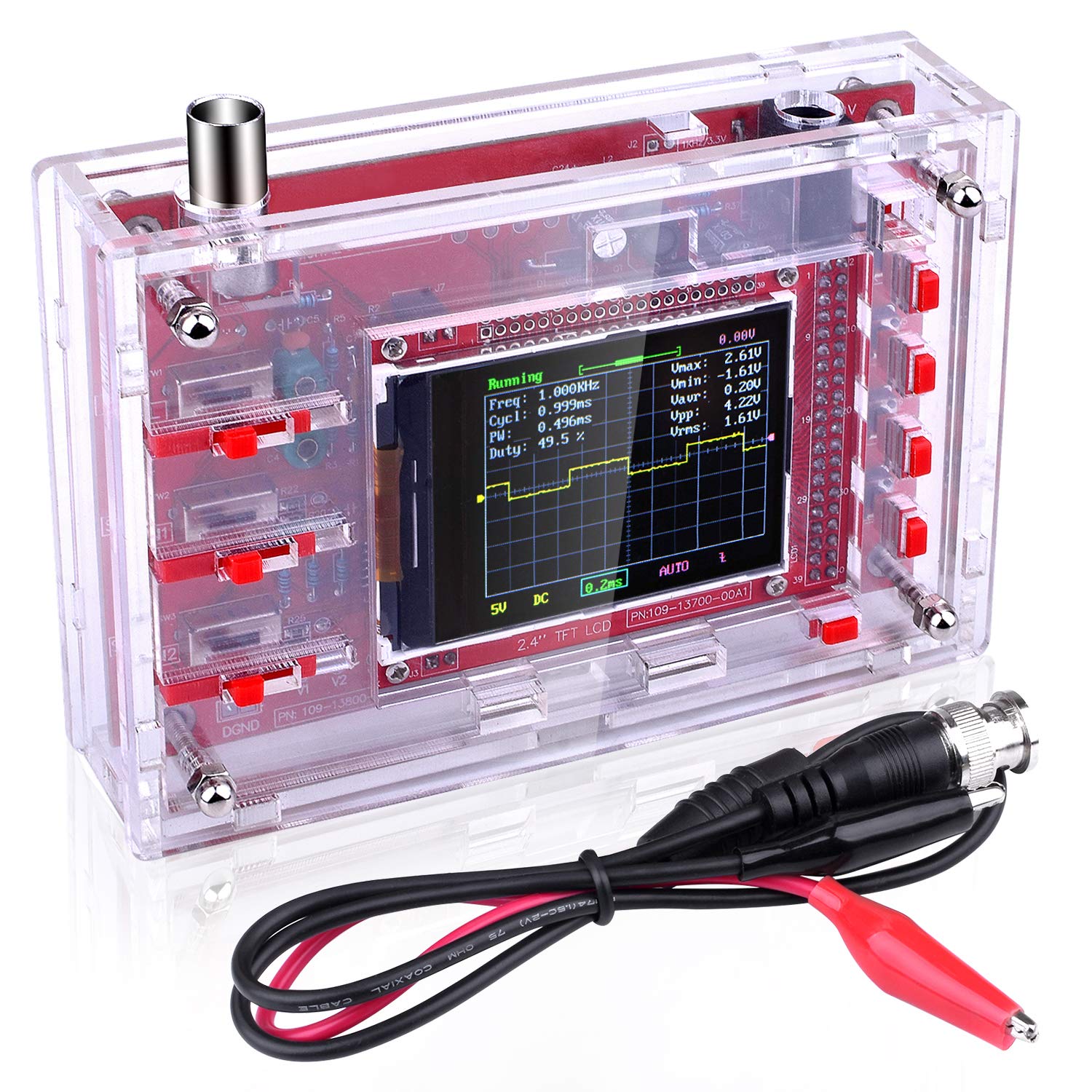

Quimat Pocket-Size Digital Oscilloscope Kit Open Source 2.4" TFT 1Msps with Probe and Protective Case, Welded Version (Case Needs to be Assembled)
Current Price
$29.99
Average
$29.99
Min Price
$29.99
Max Price
$29.99
Price dynamics
0%
Description
Full assembled, NOT DIY KIT! Contains only the basical oscilloscope functions with no fancy features. Simplicity in structure and easiness in assembly/operation are among the main targets of the design. For these purpose, uses mostly through-hole parts. The heart is a Cortex-M3 ARM processor (STM32F103C8) from ST. Using a 2.4-inch TFT LCD (320 X 240 dotmatrix, 262K colors) as its display element and displays clear waveform. Detail assemble instructions are provided in combination with troubleshooting guide and schemata. Source codes are also available to allow user to add their own features. Features: Analog bandwidth: 0 - 200KHz Sampling rate: 1Msps max Sensitivity: 10mV/Div - 5V/Div Sensitivity error: < 5% Vertical resolution: 12-bit Timebase: 10us/Div - 500s/Div Record length: 1024 points Built-in 1KHz/3.3V test signal Waveform frozen (HOLD) function available Package included: 1 * Digital Oscilloscope Kit 1 * Probe 1* User Manual(English) NOTE: 9V DC power supply required and Not Included.
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
