Description
Specification:
Number of Channel: 1
Analog Bandwidth: 0 - 200KHz
Sensitivity: 5mV/Div - 20V/Div
Sensitivity error: < 5%
Resolution: 12-bit
Input Impedance: 1M ohm
Maximum Input voltage: 50Vpk
Coupling: DC, AC, GND
Trigger Modes: Auto, Normal, Single
Trigger Types: Rising/falling edge
Trigger Position: 1/2 of buffer size fixed
Display: 2.4 inch color TFT LCD with 320 x 240 resolution
Power Supply: 9V DC (8 - 10V acceptable), NOT INCLUDED
Dimension: 115mm X 75mm X 22mm
Weight: 100 gram (not including cables and power supply)
Package Contents:
Oscilloscope * 1
BNC-clip cable * 1
Users Manual * 1
Kindly note:
Runs on 9V (do not use power voltage higher than 10V!)
Number of Channel: 1
Analog Bandwidth: 0 - 200KHz
Sensitivity: 5mV/Div - 20V/Div
Sensitivity error: < 5%
Resolution: 12-bit
Input Impedance: 1M ohm
Maximum Input voltage: 50Vpk
Coupling: DC, AC, GND
Trigger Modes: Auto, Normal, Single
Trigger Types: Rising/falling edge
Trigger Position: 1/2 of buffer size fixed
Display: 2.4 inch color TFT LCD with 320 x 240 resolution
Power Supply: 9V DC (8 - 10V acceptable), NOT INCLUDED
Dimension: 115mm X 75mm X 22mm
Weight: 100 gram (not including cables and power supply)
Package Contents:
Oscilloscope * 1
BNC-clip cable * 1
Users Manual * 1
Kindly note:
Runs on 9V (do not use power voltage higher than 10V!)

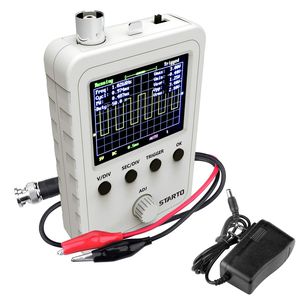

STARTO Handheld Digital Oscilloscope Kit 2.4" TFT with BNC-Clip Cable Probe and Power Supply (Assembled Finished Machine) SQ15001 (White)
Current Price
$42.99
Average
$42.3
Min Price
$39.53
Max Price
$42.99
Price dynamics
2%
Description
Specification:
Number of Channel: 1
Analog Bandwidth: 0 - 200KHz
Sensitivity: 5mV/Div - 20V/Div
Sensitivity error: < 5%
Resolution: 12-bit
Input Impedance: 1M ohm
Maximum Input voltage: 50Vpk
Coupling: DC, AC, GND
Trigger Modes: Auto, Normal, Single
Trigger Types: Rising/falling edge
Trigger Position: 1/2 of buffer size fixed
Display: 2.4 inch color TFT LCD with 320 x 240 resolution
Power Supply: 9V DC (8 - 10V acceptable), NOT INCLUDED
Dimension: 115mm X 75mm X 22mm
Weight: 100 gram (not including cables and power supply)
Package Contents:
Oscilloscope * 1
BNC-clip cable * 1
Users Manual * 1
Kindly note:
Runs on 9V (do not use power voltage higher than 10V!)
Number of Channel: 1
Analog Bandwidth: 0 - 200KHz
Sensitivity: 5mV/Div - 20V/Div
Sensitivity error: < 5%
Resolution: 12-bit
Input Impedance: 1M ohm
Maximum Input voltage: 50Vpk
Coupling: DC, AC, GND
Trigger Modes: Auto, Normal, Single
Trigger Types: Rising/falling edge
Trigger Position: 1/2 of buffer size fixed
Display: 2.4 inch color TFT LCD with 320 x 240 resolution
Power Supply: 9V DC (8 - 10V acceptable), NOT INCLUDED
Dimension: 115mm X 75mm X 22mm
Weight: 100 gram (not including cables and power supply)
Package Contents:
Oscilloscope * 1
BNC-clip cable * 1
Users Manual * 1
Kindly note:
Runs on 9V (do not use power voltage higher than 10V!)
