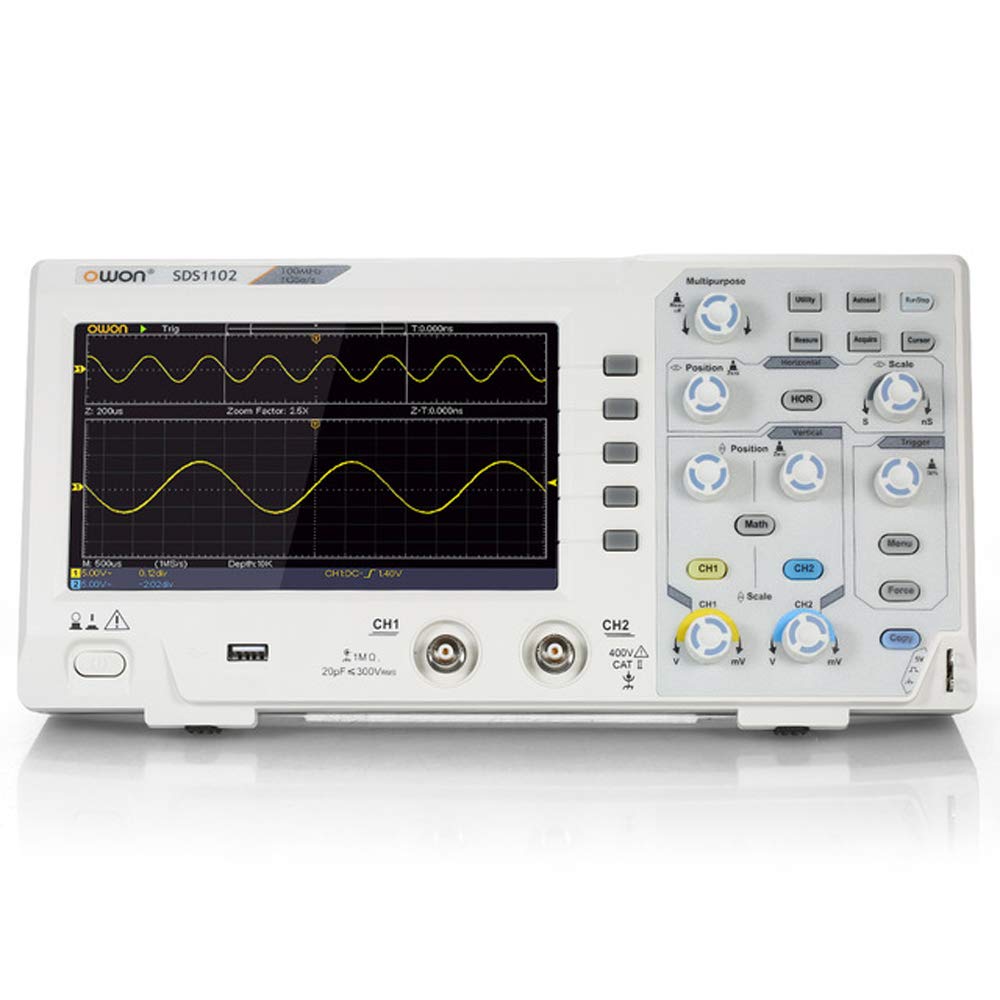

Description
Specifications:
Bandwidth: 100MHz
Sample Rate: 1GS/s
Horizontal Scale (s/div): 2ns/div - 1000s/div, step by 1 - 2 - 5
Rise Time (at input, typical): ≤3.5ns
Channel: 2
Display: 7" color LCD, 800 x 480 pixels
Input Impedance: 1MΩ± 2%, in parallel with 20pF±5pF
Channel Isolation: 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage: 400V (PK - PK) (DC+AC, PK - PK)
DC Gain Accuracy: ±3%
Record Length: 10K
DC Accuracy (average): Average≥16:±(3% reading + 0.05 div) for △V
Probe Attenuation Factor: 1X, 10X, 100X, 1000X
LF Respond (AC, -3dB): ≥10Hz (at input, AC coupling, -3dB)
Sample Rate / Relay Time Accuracy: ±100ppm
Interpolation: sin (x) / x
Interval (△T) Accuracy (full bandwidth): Single : ±(1 interval time + 100ppm x reading + 0.6ns),
Average>16 : ±(1 interval time + 100ppm x reading + 0.4ns)
Input Coupling: DC, AC , and GND
Vertical Resolution (A/D): 8 bits (2 channels simultaneously)
Vertical Sensitivity: 5mV/div - 5V/div (at input)
Trigger Type: Edge, Video
Trigger Mode: Auto, Normal, and Single
Trigger Level: ±5 divisions from screen center
Line / Field Frequency (video): NTSC, PAL and SECAM standard
Cursor Measurement: △V, and △T between cursors
Automatic Measurement: Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot,
Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B , area, cycle area
Waveform Math: ＋, －, x, ÷, invert, FFT
Waveform Storage: 16 waveform
Lissajous Figure: Bandwidth: Full bandwidth ;Phase Difference: ±3 degrees
Communication Interface: USB host, USB device
Frequency Counter: available
Power Supply: 100V - 240V AC, 50/60Hz, CAT II
Power Consumption: ＜15W
Fuse : 2A, T class, 250V
