Description
Specifications:
Bandwidth: 25Mhz
Channel: 2+1 (multi)
Sample Rate: 100MSa/s
Horizontal Scale (s/div): 5ns/div~100s/div, step by 1~2~5
Rise Time: ≤14 ns
Record Length: 5K
Input Coupling: DC, C, GND
Input Impedance: 1MΩ±2%, in parallel with10pF±5pF
Channels Isolation: 50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage: 400V (PK - PK) (DC+ C, PK - PK)
DC Gain accuracy: ±3%
DC accuracy average: ≥16: ±(3% reading + 0.05div) for Triangle T
Probe attenuation Factor: 1 , 10 , 100 , 1000
LF Respond ( C, -3dB): ≥5Hz (at input, C coupling, -3dB)
Sampling Rate / Relay Time accuracy: 150ps
Interpolation: sin(x) /x
Interval (Triangle T) accuracy (full bandwidth): Single: ± (1 interval time + 100ppm x reading + 0.6ns), average >16: ±(1 interval time +100ppm x reading + 0.4ns)
Vertical Resolution ( /D): 8 bits (2 channels simultaneously)
Vertical Sensitivity: 5mV/div~5V/div
Trigger Type: Edge, Pulse, Video, Slope, alternate
Trigger Mode: auto, Normal, Single
Trigger Level: ±5 divisions from screen center
acquisition Mode: Sample, Detect, and average
Line / Field Frequency (video): NTSC, PAL, and SECAM standard
Cursor Measurement: Triangle V, and Triangle T between cursors
automatic Measurement: Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay to B, Delay to B, +Width, -Width, +Duty, -Duty
Waveform Math: +, -, x, /, invert, FFT
Lissajous Figure :Bandwidth, full bandwidth
Phase Difference: ±3 degrees
Communication Interface: USB 2.0
Multi-function Interface: Signal Type, TTL
Power Supply: 5.0V/1A
Power Consumption: ≤1.5W

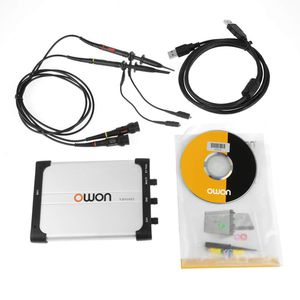

Package Included:
1 x PC Oscilloscope
2 x Probe
1 x USB cable
1 x CD
1 x Manual
1 x Adjust tool
2 x Tip locating sleeve
8 x Color circle
2 x Ground spring
