Description
With OSC482-based PC oscilloscope, We can combine it with signal generator module and Logic Analyzer module as OSC482X. We keep updating oscilloscope software for improving features/operations to the link: http://bbs.lotoins.com/support.html
• Signal output: Sine(1Hz~13MHz) , triangle(1Hz~8MHz) , square wave(1Hz~1MHz)
• Adjust: Amplitude: ±4V except for square wave || Offset: ±4V
• PC: Windows XP, Win 7, Win 8.1, Win10.
• Analogue Inputs: 1MΩ/25pF || AC/DC || ±100mV~±5V(1x probe) || ±1V~±50V(10x probe) || ±10V~±500V(100x probe).
• Overload protection: ±60V(1x probe) || ±600V(10x probe).
• Memory depth: 512~5M(byte/ch).
• Time range: 50ns~2s/div.
•Input sensitivity20 mV/div to 2 V/div.
• Interpolation: Linear or sin(x)/x.
• FFT: 1k~16k points || Rectangle/Hanning/Hamming/Blackman.
• Trigger: Auto,Single,Normal || Rising/falling edge on trigger level.
• Math: A+B, A-B, AxB, X_Y Plot.
• Acquisition Modes: Normal/HiRes/Peak-detect mode.
• Record and playback: 50~450 frames || 6 MB~20GB.
• Auto measurement: maximum, minimum, peak-to-peak, frequency, averag, RMS, rise time, positive pulse width, negative pulse width, duty cycle,deep measurement.
• Manual measurement: Marking/Cursor/Annotations/Ruler Measurements.
• Buffer waveform thumbnail: Dragging/Sliding/Hot keys for browsing.
• Settings: Save || Reload.
• Data logger: 1s~1h sample interval || 1 min~3 days duration.
•Package List
– 1 OSC482 Oscilloscope
– 1 USB printer cable
– 2 Probes
– 1 Signal generator Module
– 1 Logic Analyzer Module
– 1 Signal output cable
• Signal output: Sine(1Hz~13MHz) , triangle(1Hz~8MHz) , square wave(1Hz~1MHz)
• Adjust: Amplitude: ±4V except for square wave || Offset: ±4V
• PC: Windows XP, Win 7, Win 8.1, Win10.
• Analogue Inputs: 1MΩ/25pF || AC/DC || ±100mV~±5V(1x probe) || ±1V~±50V(10x probe) || ±10V~±500V(100x probe).
• Overload protection: ±60V(1x probe) || ±600V(10x probe).
• Memory depth: 512~5M(byte/ch).
• Time range: 50ns~2s/div.
•Input sensitivity20 mV/div to 2 V/div.
• Interpolation: Linear or sin(x)/x.
• FFT: 1k~16k points || Rectangle/Hanning/Hamming/Blackman.
• Trigger: Auto,Single,Normal || Rising/falling edge on trigger level.
• Math: A+B, A-B, AxB, X_Y Plot.
• Acquisition Modes: Normal/HiRes/Peak-detect mode.
• Record and playback: 50~450 frames || 6 MB~20GB.
• Auto measurement: maximum, minimum, peak-to-peak, frequency, averag, RMS, rise time, positive pulse width, negative pulse width, duty cycle,deep measurement.
• Manual measurement: Marking/Cursor/Annotations/Ruler Measurements.
• Buffer waveform thumbnail: Dragging/Sliding/Hot keys for browsing.
• Settings: Save || Reload.
• Data logger: 1s~1h sample interval || 1 min~3 days duration.
•Package List
– 1 OSC482 Oscilloscope
– 1 USB printer cable
– 2 Probes
– 1 Signal generator Module
– 1 Logic Analyzer Module
– 1 Signal output cable

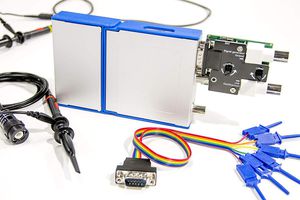

Loto OSC482X, USB Oscilloscope + Signal Generator + Logic Analyzer + Data Logger, 4 in 1, 50M S/s, 8~13 bit Vertical Resolution (PC Oscilloscope + Signal Generator + Logic Analyzer, OSC482X)
