Description
Why do you choose us:
✔High-tech chip
LIUMY LM2001 emphasis on functional combination for field testing process, not to replace the meter. It reflects the high-tech, using a dedicated chip has, as the wave function, you can view the waveform signal 10KHZ within.
✔Extensive detection function and range
Features include DC/AC voltag /current, resistance, capacitance, frequency, diode / continuity test. Can be home, school, power plant, work area has excellent performance!
✔Save money
As a large number of measuring instruments waveform, you will find LM2001 is the most affordable one, spend the price of a multimeter, you can have a table can be seen, as the wave of the waveform, value for money!
Specification:
Analog Bandwidth: 0~ 10kHz
The maximum real-time sampling rate: 200ksps
DC voltage: 0mV ~ 1000V ± (0.75% rdg + 10dgt)
AC voltage: 0 mv ~ 750V ± (1.0% rdg + 10dgt)
DC Current: 0mA ~ 20.00A ± (1.2% rdg + 10dgt)
AC current: 0mA ~ 20.00A ± (1.5% rdg + 10dgt)
Resistance: 0W ~ 20.00MW ± (1.0% rdg + 5dgt)
Capacitance: 0nF ~ 200.0μF ± (2% rdg + 10dgt)
Frequency: 0kHz ~ 200kHz ± (1.0% rdg + 5dgt),
Diode test: open circuit voltage of about 1.5 V, the maximum test current of about 1.5mA.
Continuity Test: determine resistance: about 30
Remote control Detection: 38kHz carrier frequency
Transistor Magnification: 30 ~ 1000 (annex)
Fuse rating: Φ5 × 20,250mA / 250V
Display: 128 * 64 dot-matrix graphic LCD
Battery: 4 x 1.5V AA battery (included)
Storage capacity: DMM 100 groups of data, waveform 5 group records
Dimensions: 186mm * 100 mm * 45mm
Weight: 370g (without other accessories)
Package included:

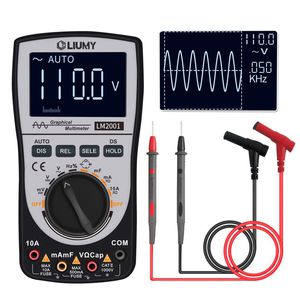

1 x LIUMY LM2001 Handheld Storage Oscilloscope Multimeter
2 x Test Lead
1 x Portable Bag
1 x hFE tester
1 x English User Manual
4 x 1.5V AA battery
✔High-tech chip
LIUMY LM2001 emphasis on functional combination for field testing process, not to replace the meter. It reflects the high-tech, using a dedicated chip has, as the wave function, you can view the waveform signal 10KHZ within.
✔Extensive detection function and range
Features include DC/AC voltag /current, resistance, capacitance, frequency, diode / continuity test. Can be home, school, power plant, work area has excellent performance!
✔Save money
As a large number of measuring instruments waveform, you will find LM2001 is the most affordable one, spend the price of a multimeter, you can have a table can be seen, as the wave of the waveform, value for money!
Specification:
Analog Bandwidth: 0~ 10kHz
The maximum real-time sampling rate: 200ksps
DC voltage: 0mV ~ 1000V ± (0.75% rdg + 10dgt)
AC voltage: 0 mv ~ 750V ± (1.0% rdg + 10dgt)
DC Current: 0mA ~ 20.00A ± (1.2% rdg + 10dgt)
AC current: 0mA ~ 20.00A ± (1.5% rdg + 10dgt)
Resistance: 0W ~ 20.00MW ± (1.0% rdg + 5dgt)
Capacitance: 0nF ~ 200.0μF ± (2% rdg + 10dgt)
Frequency: 0kHz ~ 200kHz ± (1.0% rdg + 5dgt),
Diode test: open circuit voltage of about 1.5 V, the maximum test current of about 1.5mA.
Continuity Test: determine resistance: about 30
Remote control Detection: 38kHz carrier frequency
Transistor Magnification: 30 ~ 1000 (annex)
Fuse rating: Φ5 × 20,250mA / 250V
Display: 128 * 64 dot-matrix graphic LCD
Battery: 4 x 1.5V AA battery (included)
Storage capacity: DMM 100 groups of data, waveform 5 group records
Dimensions: 186mm * 100 mm * 45mm
Weight: 370g (without other accessories)
Package included:
1 x LIUMY LM2001 Handheld Storage Oscilloscope Multimeter
2 x Test Lead
1 x Portable Bag
1 x hFE tester
1 x English User Manual
4 x 1.5V AA battery
Oscilloscope Multimeter 2.0 Update,LIUMY Professional LED Handheld Oscilloscope Multimeter with 200ksps A/D Automatic Waveform Capture Function,DC/AC Voltage/Current Test,HD Display with Backlight
Current Price
$78.99
Average
$76.72
Min Price
$64.99
Max Price
$85.99
Price dynamics
3%
Description
Why do you choose us:
✔High-tech chip
LIUMY LM2001 emphasis on functional combination for field testing process, not to replace the meter. It reflects the high-tech, using a dedicated chip has, as the wave function, you can view the waveform signal 10KHZ within.
✔Extensive detection function and range
Features include DC/AC voltag /current, resistance, capacitance, frequency, diode / continuity test. Can be home, school, power plant, work area has excellent performance!
✔Save money
As a large number of measuring instruments waveform, you will find LM2001 is the most affordable one, spend the price of a multimeter, you can have a table can be seen, as the wave of the waveform, value for money!
Specification:
Analog Bandwidth: 0~ 10kHz
The maximum real-time sampling rate: 200ksps
DC voltage: 0mV ~ 1000V ± (0.75% rdg + 10dgt)
AC voltage: 0 mv ~ 750V ± (1.0% rdg + 10dgt)
DC Current: 0mA ~ 20.00A ± (1.2% rdg + 10dgt)
AC current: 0mA ~ 20.00A ± (1.5% rdg + 10dgt)
Resistance: 0W ~ 20.00MW ± (1.0% rdg + 5dgt)
Capacitance: 0nF ~ 200.0μF ± (2% rdg + 10dgt)
Frequency: 0kHz ~ 200kHz ± (1.0% rdg + 5dgt),
Diode test: open circuit voltage of about 1.5 V, the maximum test current of about 1.5mA.
Continuity Test: determine resistance: about 30
Remote control Detection: 38kHz carrier frequency
Transistor Magnification: 30 ~ 1000 (annex)
Fuse rating: Φ5 × 20,250mA / 250V
Display: 128 * 64 dot-matrix graphic LCD
Battery: 4 x 1.5V AA battery (included)
Storage capacity: DMM 100 groups of data, waveform 5 group records
Dimensions: 186mm * 100 mm * 45mm
Weight: 370g (without other accessories)
Package included:
1 x LIUMY LM2001 Handheld Storage Oscilloscope Multimeter
2 x Test Lead
1 x Portable Bag
1 x hFE tester
1 x English User Manual
4 x 1.5V AA battery
✔High-tech chip
LIUMY LM2001 emphasis on functional combination for field testing process, not to replace the meter. It reflects the high-tech, using a dedicated chip has, as the wave function, you can view the waveform signal 10KHZ within.
✔Extensive detection function and range
Features include DC/AC voltag /current, resistance, capacitance, frequency, diode / continuity test. Can be home, school, power plant, work area has excellent performance!
✔Save money
As a large number of measuring instruments waveform, you will find LM2001 is the most affordable one, spend the price of a multimeter, you can have a table can be seen, as the wave of the waveform, value for money!
Specification:
Analog Bandwidth: 0~ 10kHz
The maximum real-time sampling rate: 200ksps
DC voltage: 0mV ~ 1000V ± (0.75% rdg + 10dgt)
AC voltage: 0 mv ~ 750V ± (1.0% rdg + 10dgt)
DC Current: 0mA ~ 20.00A ± (1.2% rdg + 10dgt)
AC current: 0mA ~ 20.00A ± (1.5% rdg + 10dgt)
Resistance: 0W ~ 20.00MW ± (1.0% rdg + 5dgt)
Capacitance: 0nF ~ 200.0μF ± (2% rdg + 10dgt)
Frequency: 0kHz ~ 200kHz ± (1.0% rdg + 5dgt),
Diode test: open circuit voltage of about 1.5 V, the maximum test current of about 1.5mA.
Continuity Test: determine resistance: about 30
Remote control Detection: 38kHz carrier frequency
Transistor Magnification: 30 ~ 1000 (annex)
Fuse rating: Φ5 × 20,250mA / 250V
Display: 128 * 64 dot-matrix graphic LCD
Battery: 4 x 1.5V AA battery (included)
Storage capacity: DMM 100 groups of data, waveform 5 group records
Dimensions: 186mm * 100 mm * 45mm
Weight: 370g (without other accessories)
Package included:
1 x LIUMY LM2001 Handheld Storage Oscilloscope Multimeter
2 x Test Lead
1 x Portable Bag
1 x hFE tester
1 x English User Manual
4 x 1.5V AA battery
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
