Description
Specifications:
Material: ABS
Main color: grey
Display: LCD display, 240*160dot-matrix graphics, 6000 counts
LCD size: 60 * 40mm / 2.4 * 1.6in
Backlight: constantly on
Power: 3 * 1.5V AA battery (included)
Use time: more than 8 hours
Input resistance: 10MΩ
Auto shutdown: 15 minutes or disabled
Operation height: 0~2000m
Storage capacity: 100/Data, 50/Waveform
Operation environment: 0℃~+40℃; <75%RH
Storage environment: -10℃~+60℃; <90%RH
Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in
Item weight: 210g / 7.4ounce
Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in
Package weight: 460g / 1.0lb
Digital storage:
Analog bandwidth: 40MHz
Maximum real-time sampling rate: 200Msps
Coupling means: DC/AC
Input resistance: about 100MΩ
Range of vertical sensativity: 500mV/div~200V/div
Cursor measurement function: dV, dt, I/dt (Frequency)
Range of time base: 12.5ns/div~10s/div
Scanning mode: auto / normal / single
Selection of trigger gradient: rising / descending edge
Automatic setting: automatic setting of time base and vertical amplitude
Automatic measurement function: Vp-p, Vavg, Vrms
Length of recording: 24.0div
Diode test: open circuit voltage is about 3.0V; the maximum test current is about 2mA
Continuity test: judgment of resistance: about 50Ω
Switching of automatic measuring range: applicable to various measurement functions
Reminding of over load of measuring range: "O. L" (over load)
Dynamic data window: after the main display is held, the actual measurement data is constantly refreshed
Specification of fuse: 500mA/250V, 10A/500V
Package list:
1 * Multimeter Oscilloscope
1 * Pair of Test Pens
1 * Temperature Probe
1 * Protective Bag
1 * User Manual
Material: ABS
Main color: grey
Display: LCD display, 240*160dot-matrix graphics, 6000 counts
LCD size: 60 * 40mm / 2.4 * 1.6in
Backlight: constantly on
Power: 3 * 1.5V AA battery (included)
Use time: more than 8 hours
Input resistance: 10MΩ
Auto shutdown: 15 minutes or disabled
Operation height: 0~2000m
Storage capacity: 100/Data, 50/Waveform
Operation environment: 0℃~+40℃; <75%RH
Storage environment: -10℃~+60℃; <90%RH
Item size: 160 * 83 * 32mm / 6.3 * 3.3 * 1.3in
Item weight: 210g / 7.4ounce
Package size: 190 * 140 * 45mm / 7.5 * 5.5 * 1.8in
Package weight: 460g / 1.0lb
Digital storage:
Analog bandwidth: 40MHz
Maximum real-time sampling rate: 200Msps
Coupling means: DC/AC
Input resistance: about 100MΩ
Range of vertical sensativity: 500mV/div~200V/div
Cursor measurement function: dV, dt, I/dt (Frequency)
Range of time base: 12.5ns/div~10s/div
Scanning mode: auto / normal / single
Selection of trigger gradient: rising / descending edge
Automatic setting: automatic setting of time base and vertical amplitude
Automatic measurement function: Vp-p, Vavg, Vrms
Length of recording: 24.0div
Diode test: open circuit voltage is about 3.0V; the maximum test current is about 2mA
Continuity test: judgment of resistance: about 50Ω
Switching of automatic measuring range: applicable to various measurement functions
Reminding of over load of measuring range: "O. L" (over load)
Dynamic data window: after the main display is held, the actual measurement data is constantly refreshed
Specification of fuse: 500mA/250V, 10A/500V
Package list:
1 * Multimeter Oscilloscope
1 * Pair of Test Pens
1 * Temperature Probe
1 * Protective Bag
1 * User Manual

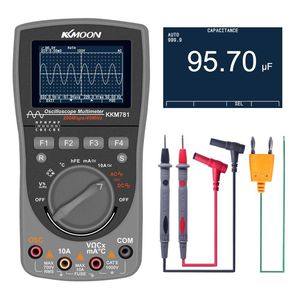

Oscilloscope,KKmoon Intelligent Digital Storage 2-in-1 Digital 40MHz 200Msps/S One Key Oscilloscope OSC 6000 Counts True RMS Multimeter DMM AC/DC Voltage Current Resistance Capacitance Frequency Meter
